Designer Radiators

Kudox Alulite Flat Textured White 600x1040mm

Kudox Alulite Flat Textured Black 600x1040mm

Kudox AluLite Arc Textured White 600x1040mm

Kudox AluLite Arc Textured Black 600x1040mm

Kudox Xylo Arctic White 600x980mm

Kudox Xylo Textured Anthracite 600x980mm

Kudox Elmas Satin White 600x970mm

Kudox Elmas Textured Anthracite 600x970mm

AluLite FLAT

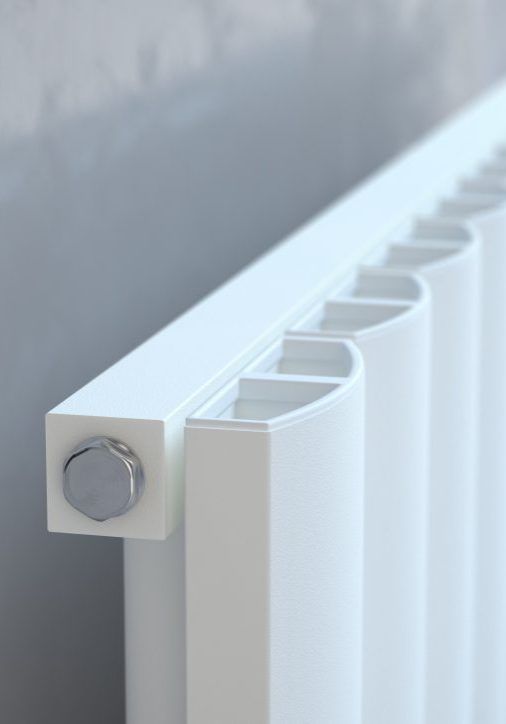

AluLite ARC

Xylo

Elmas

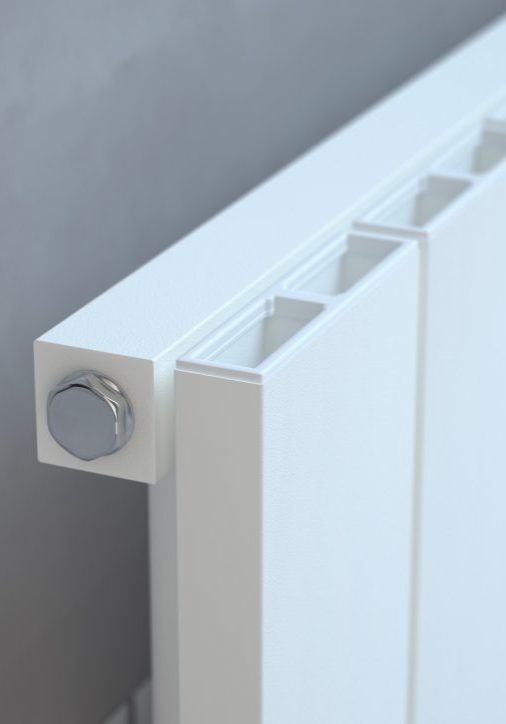

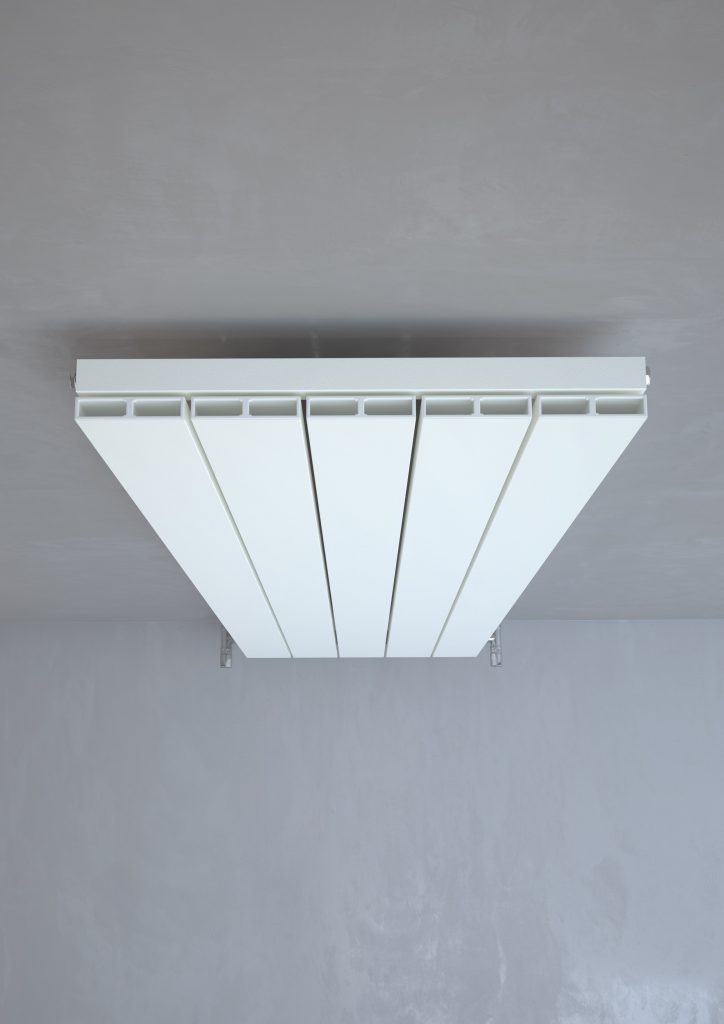

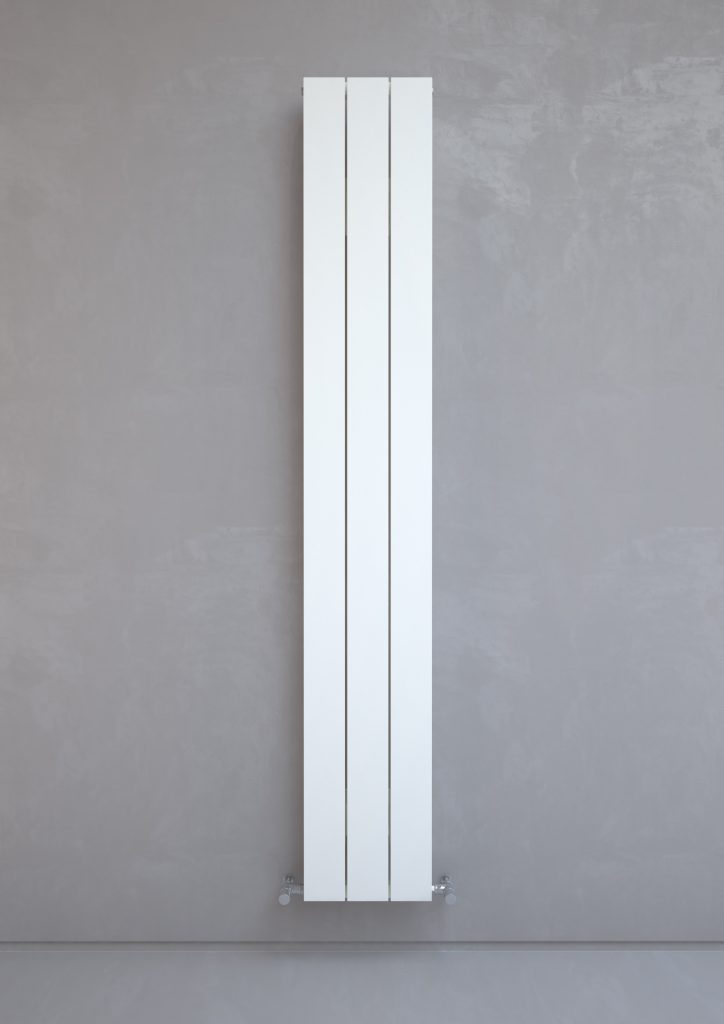

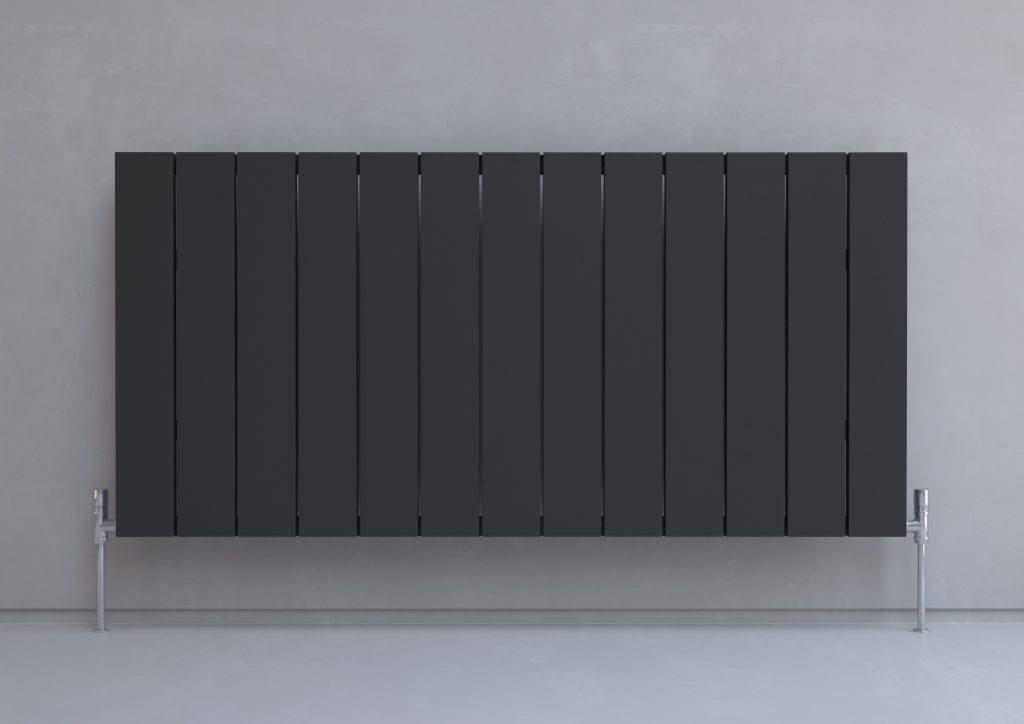

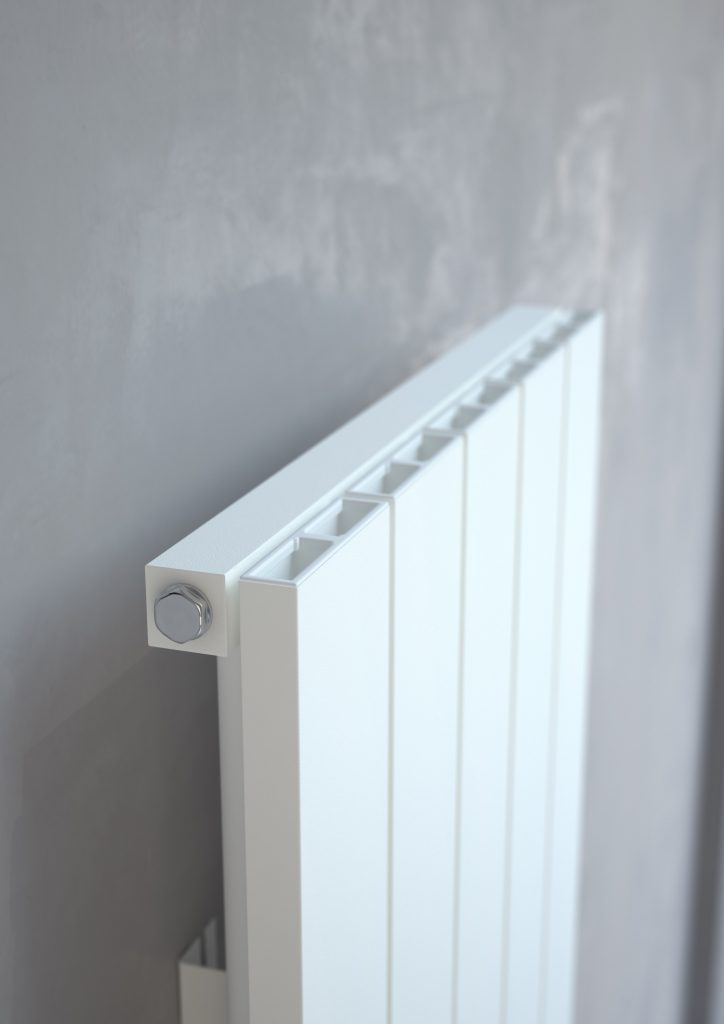

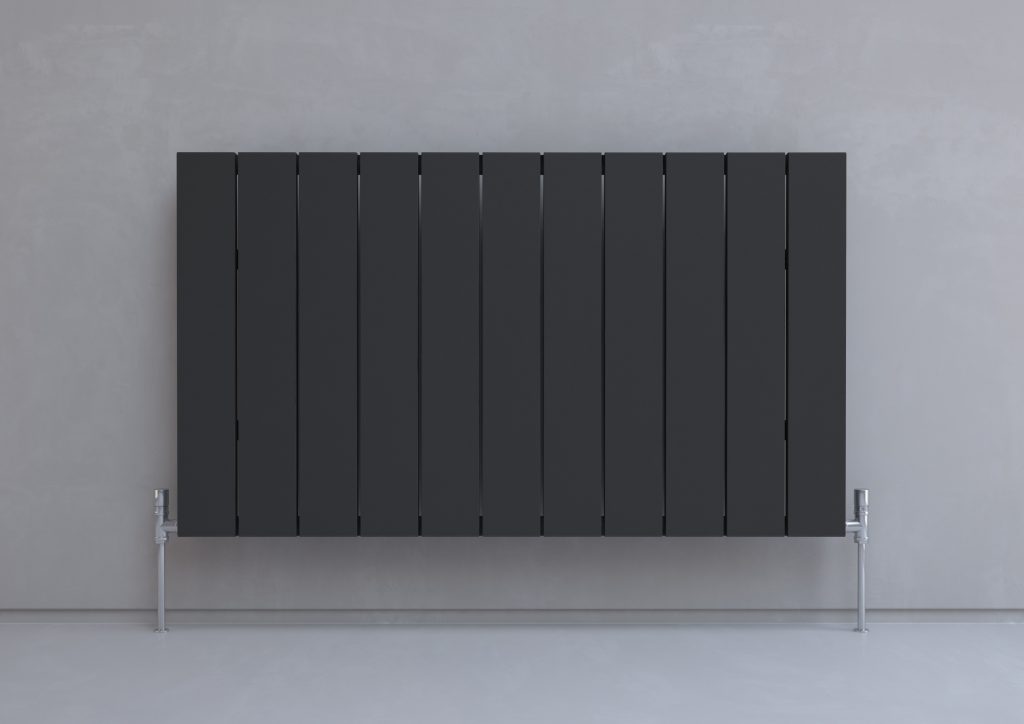

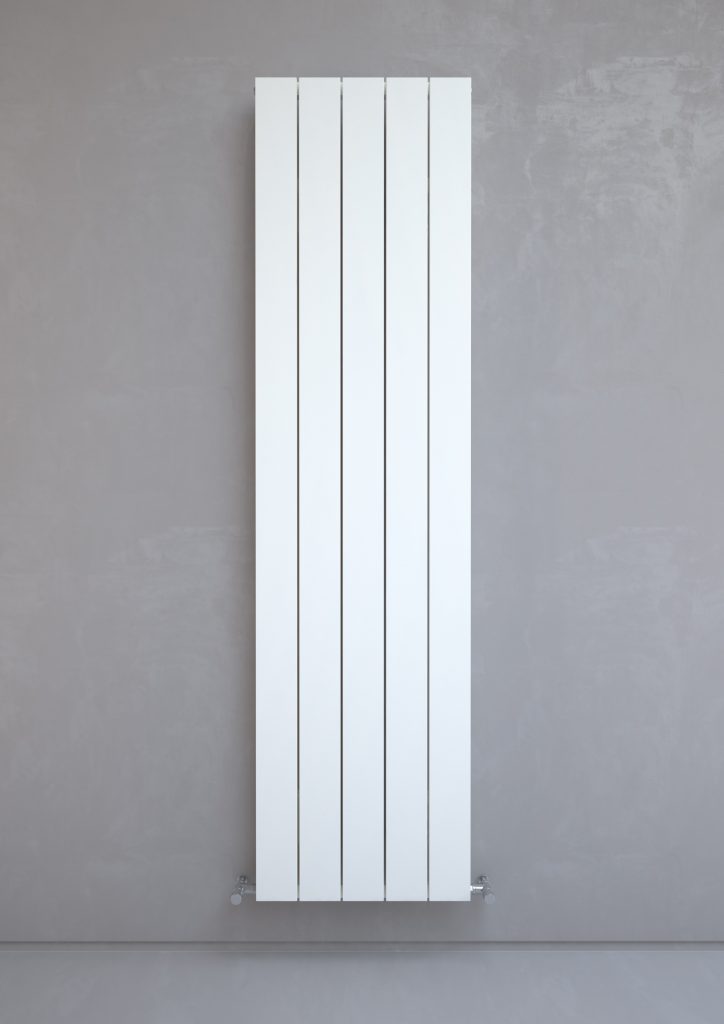

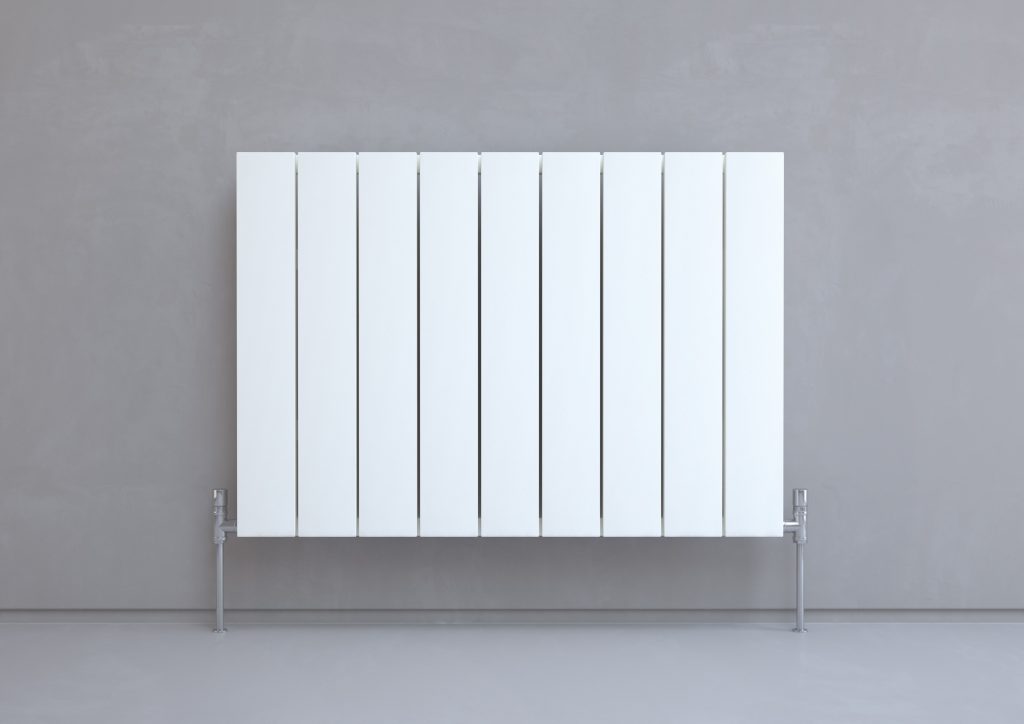

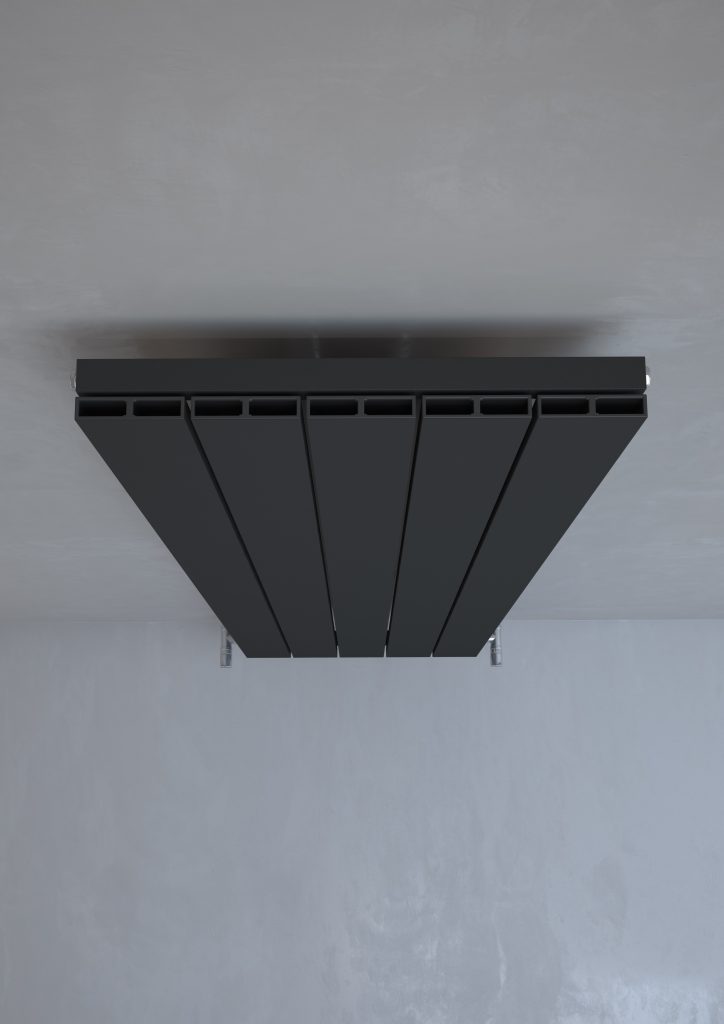

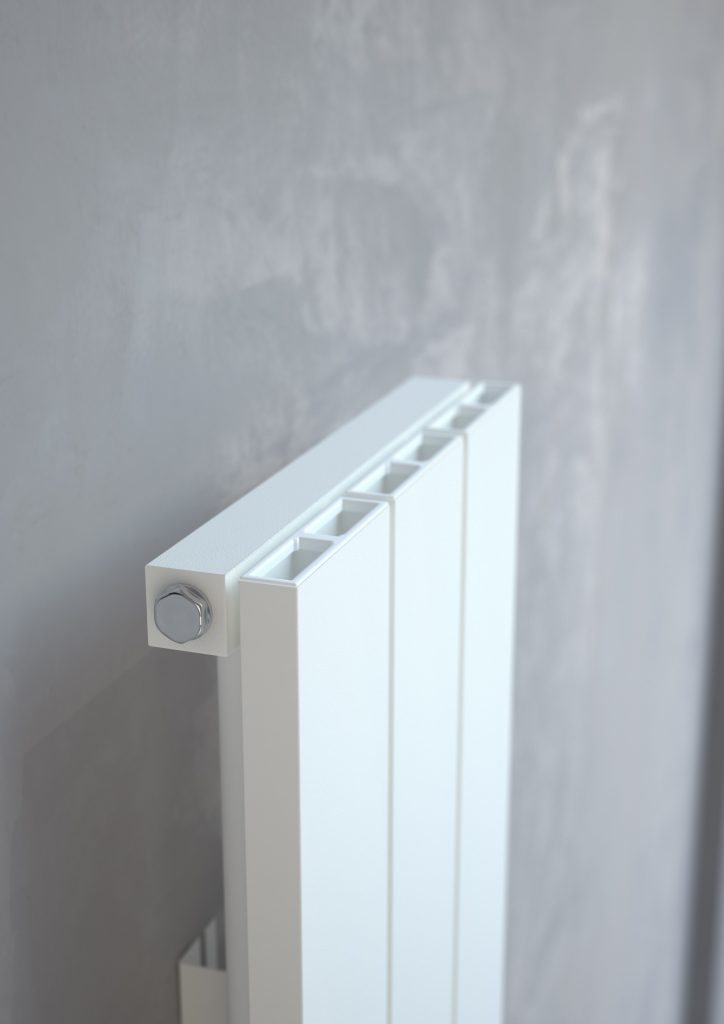

AluLite FLAT

100% Aluminium

Lightweight

Low Water Content

Faster heat-up time

Textured Finish

25-Year Warranty

1800 x 280mm White

1800 x 470mm White

1800 x 280mm Black

1800 x 470mm Black

600 x 850mm

600 x 1040mm

600 x 1230mm

Dimensions & Specifications

Product Code	Finish	Height mm	Width mm	Fitted Depth mm	∆T50 Watts	∆T50 BTU	Pipe Centres mm	Wall to Thread Centre mm	Thread Size	Sections

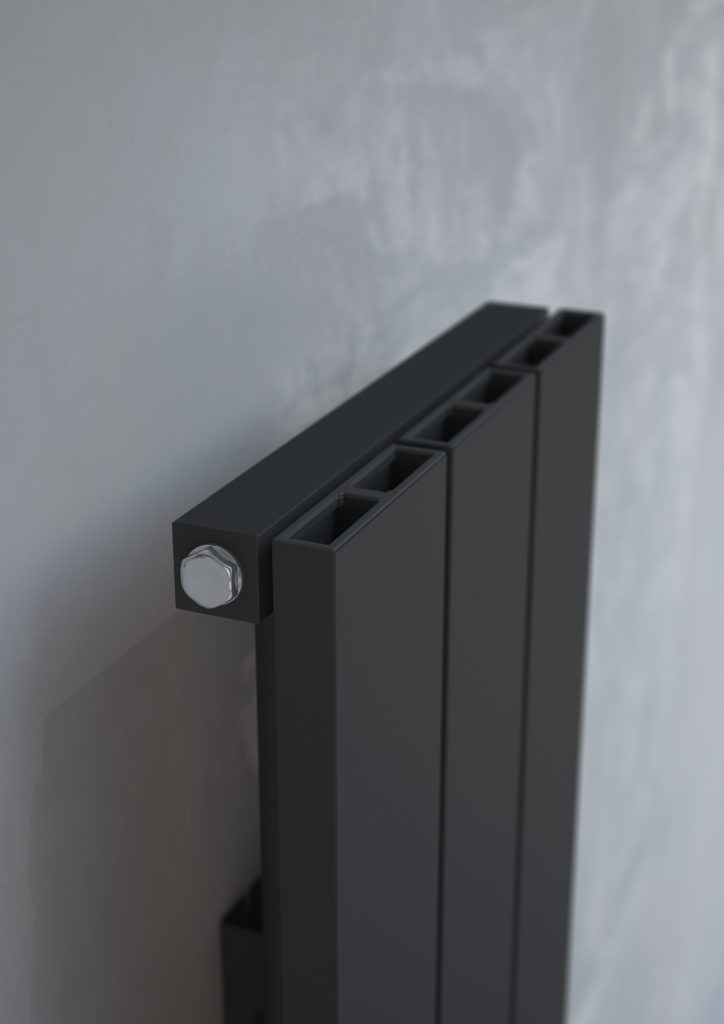

5060235348655	Textured Black	1800	280	83	685	2337	280 + Valves	43	1/2" BSP	3

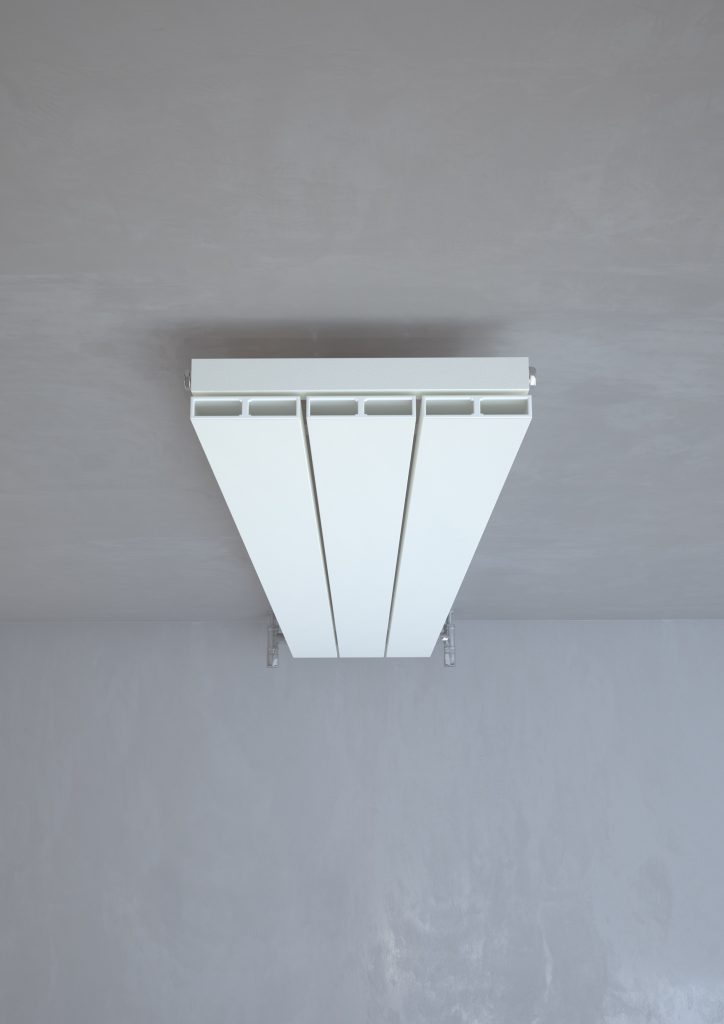

5060235348662	Textured White	1800	280	83	685	2337	280 + Valves	43	1/2" BSP	3

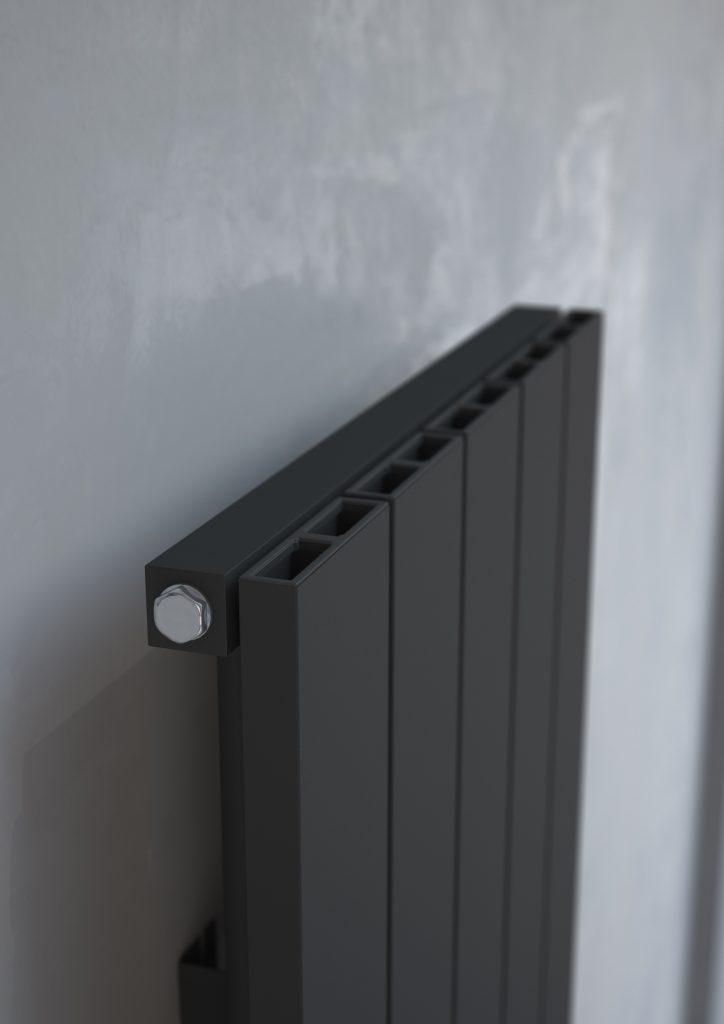

5060235348679	Textured Black	1800	470	83	1142	3897	470 + Valves	43	1/2" BSP	5
5060235348686	Textured White	1800	470	83	1142	3897	470 + Valves	43	1/2" BSP	5

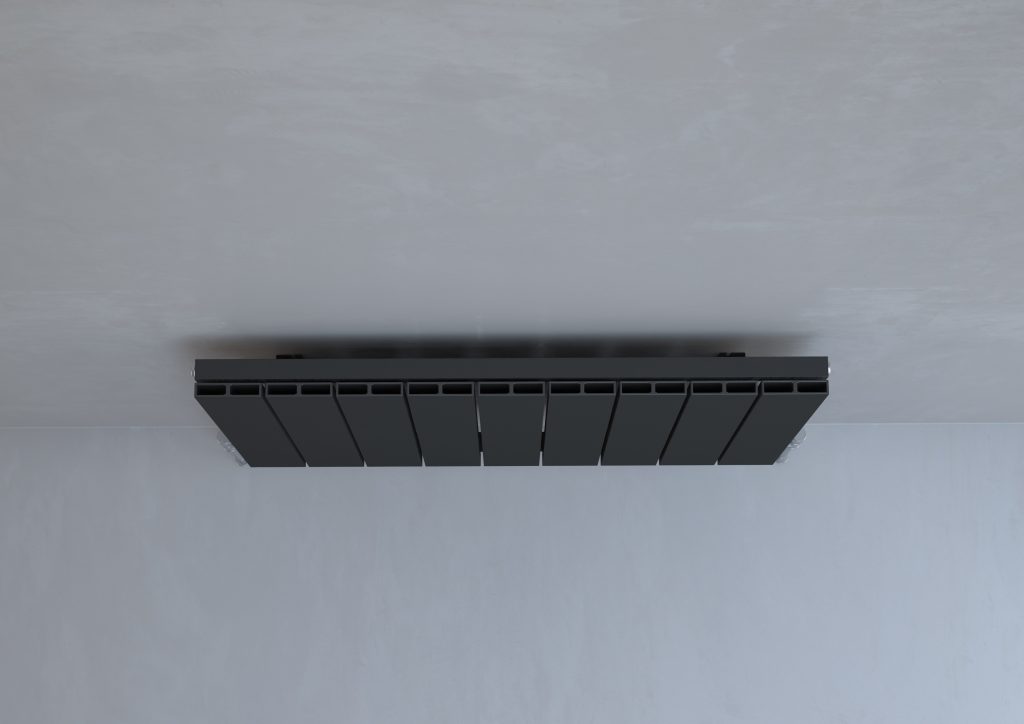

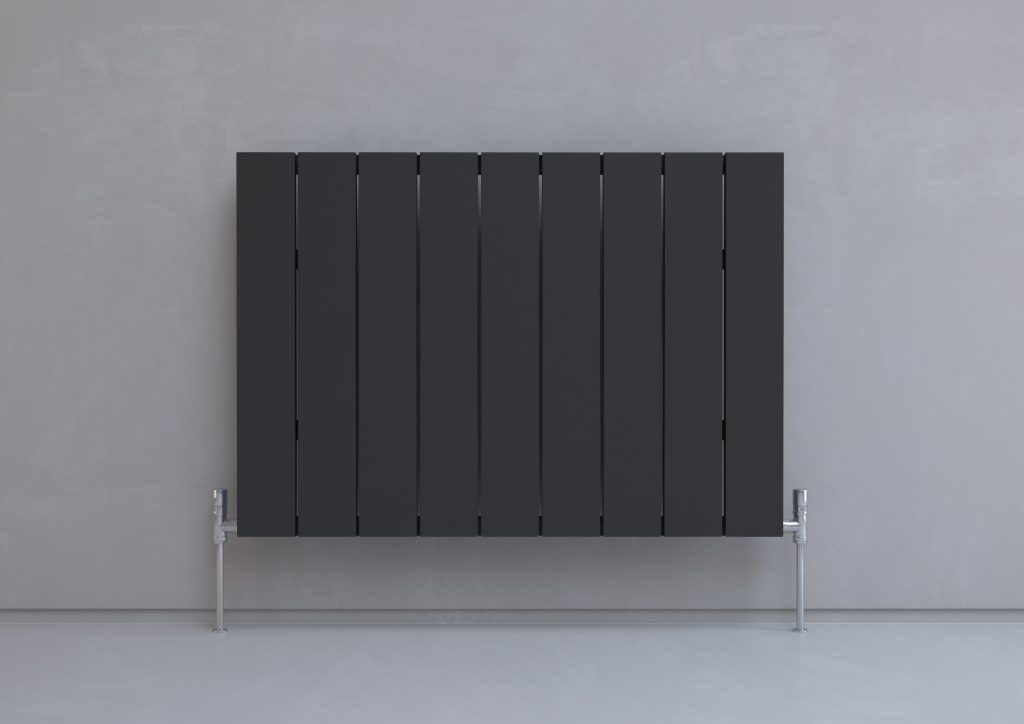

5060235348693	Textured Black	600	850	69	804	2743	850 + Valves	29	1/2" BSP	9

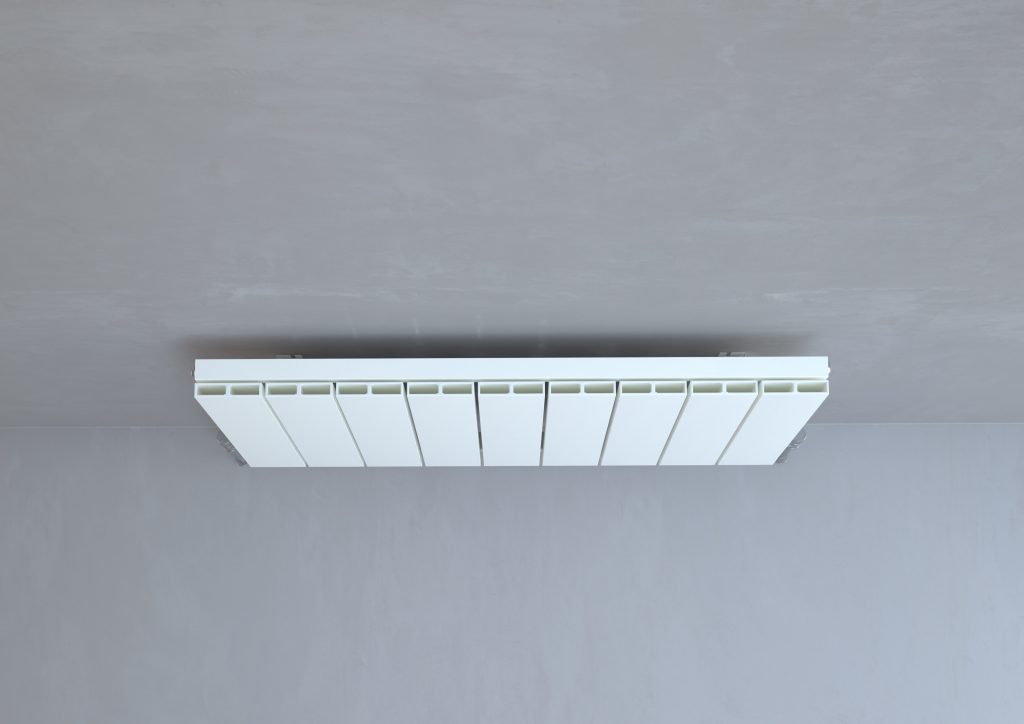

5060235348709	Textured White	600	850	69	804	2743	850 + Valves	29	1/2" BSP	9

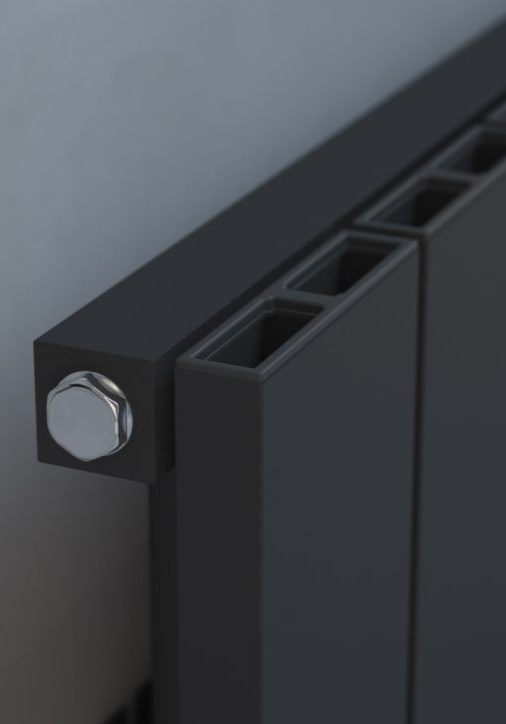

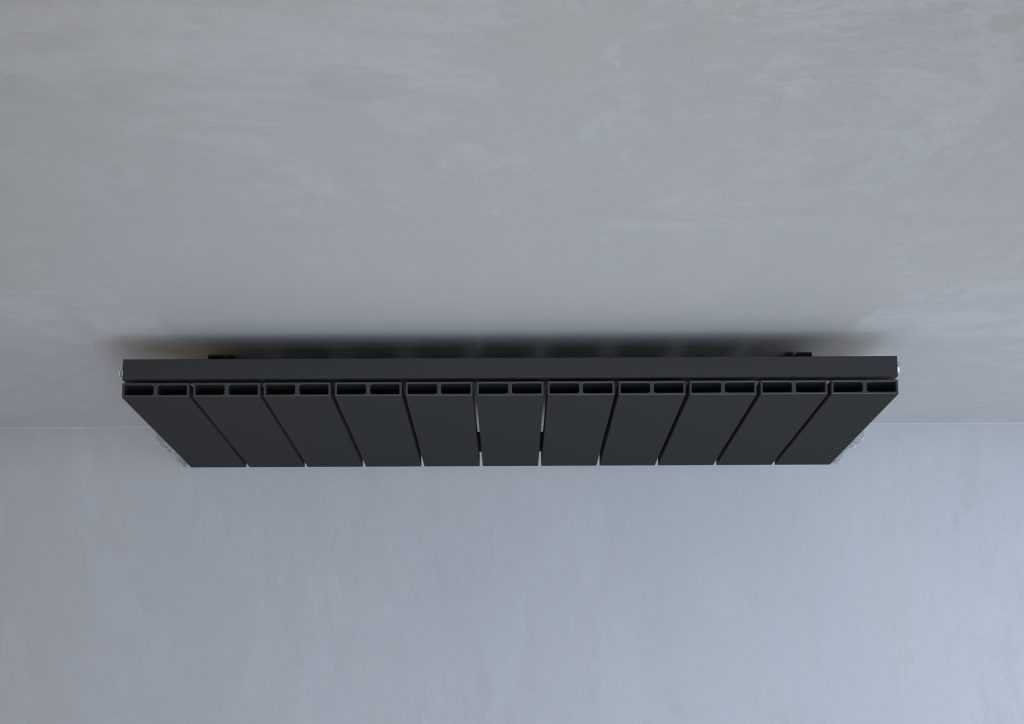

5060235348716	Textured Black	600	1040	69	982	3351	1040 + Valves	29	1/2" BSP	11
5060235348723	Textured White	600	1040	69	982	3351	1040 + Valves	29	1/2" BSP	11

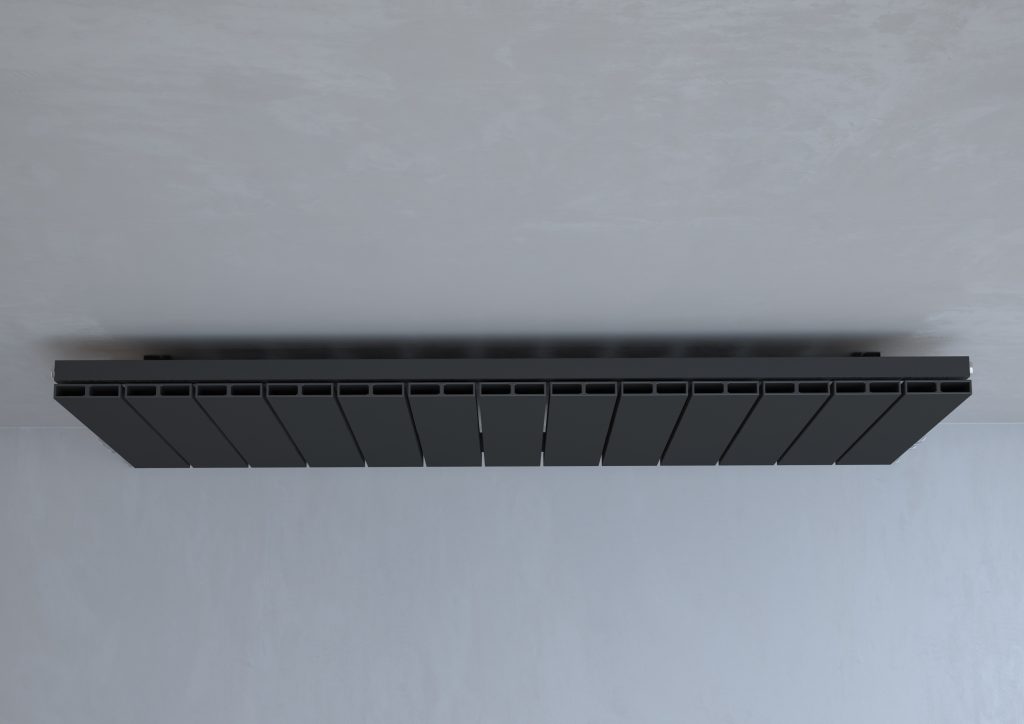

5060235348730	Textured Black	600	1230	69	1161	3962	1230 + Valves	29	1/2" BSP	13

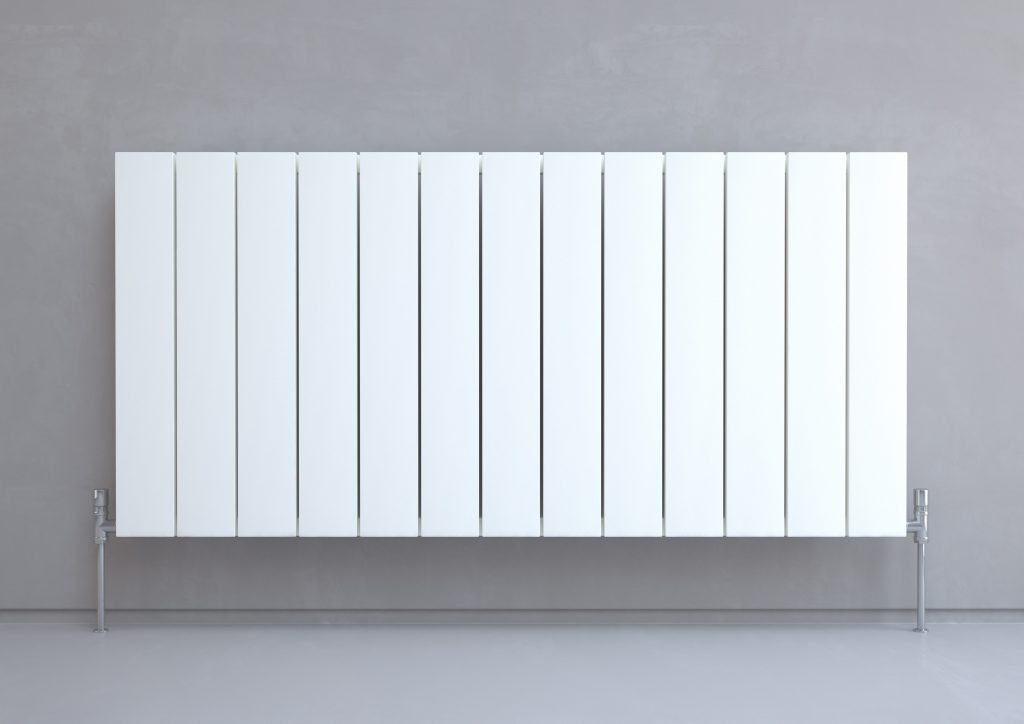

5060235348747	Textured White	600	1230	69	1161	3962	1230 + Valves	29	1/2" BSP	13

Installation Instructions and Brochure

Where to buy

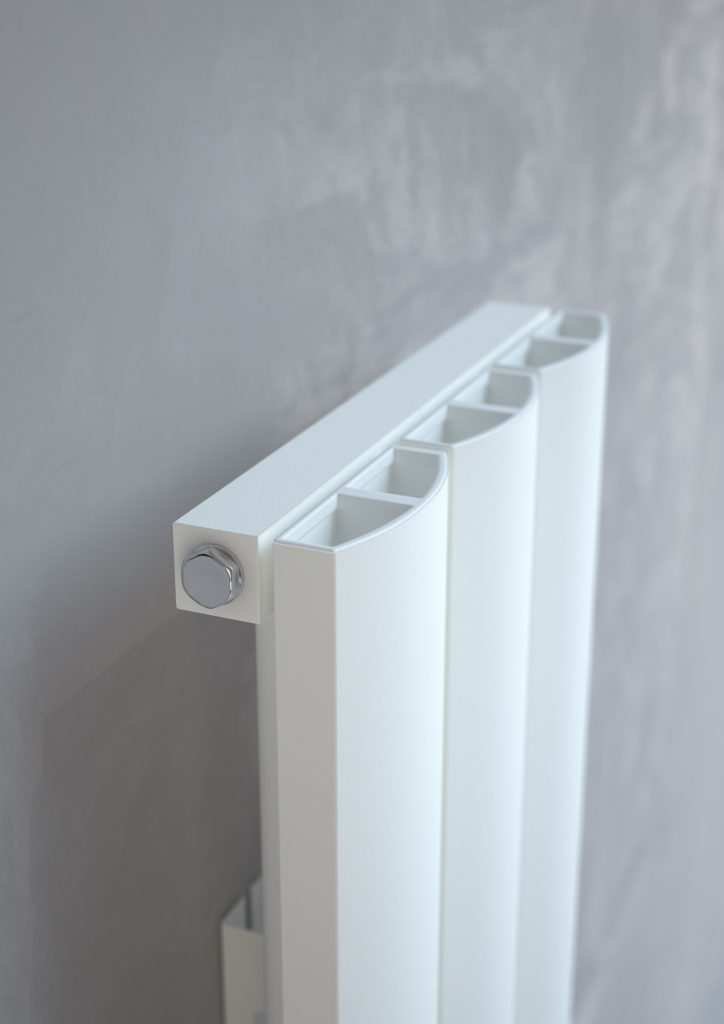

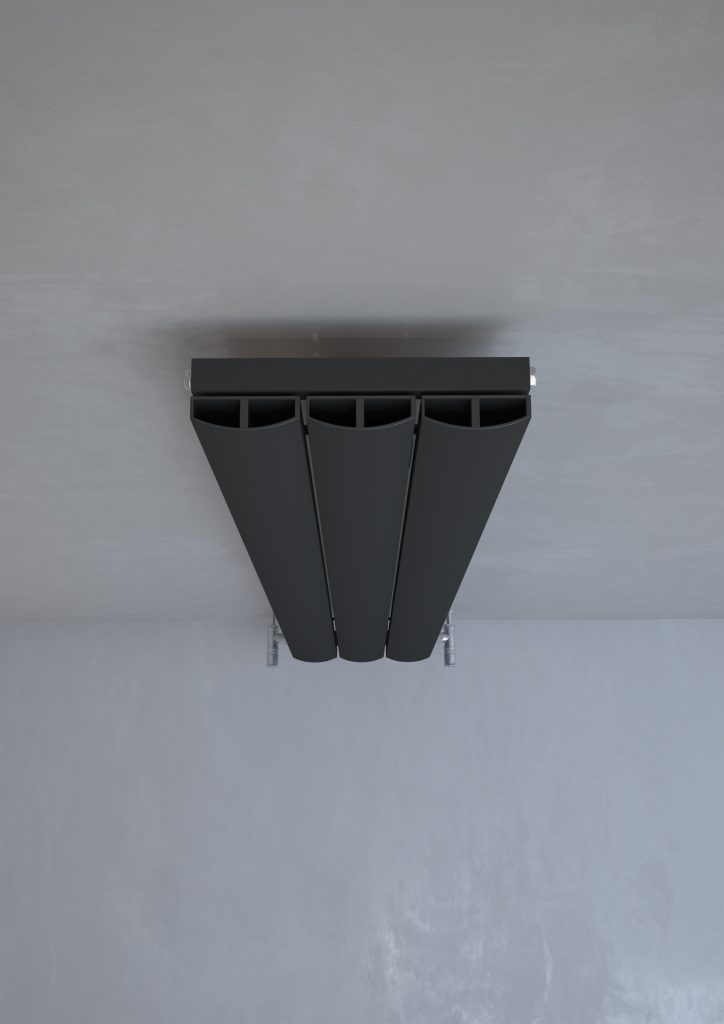

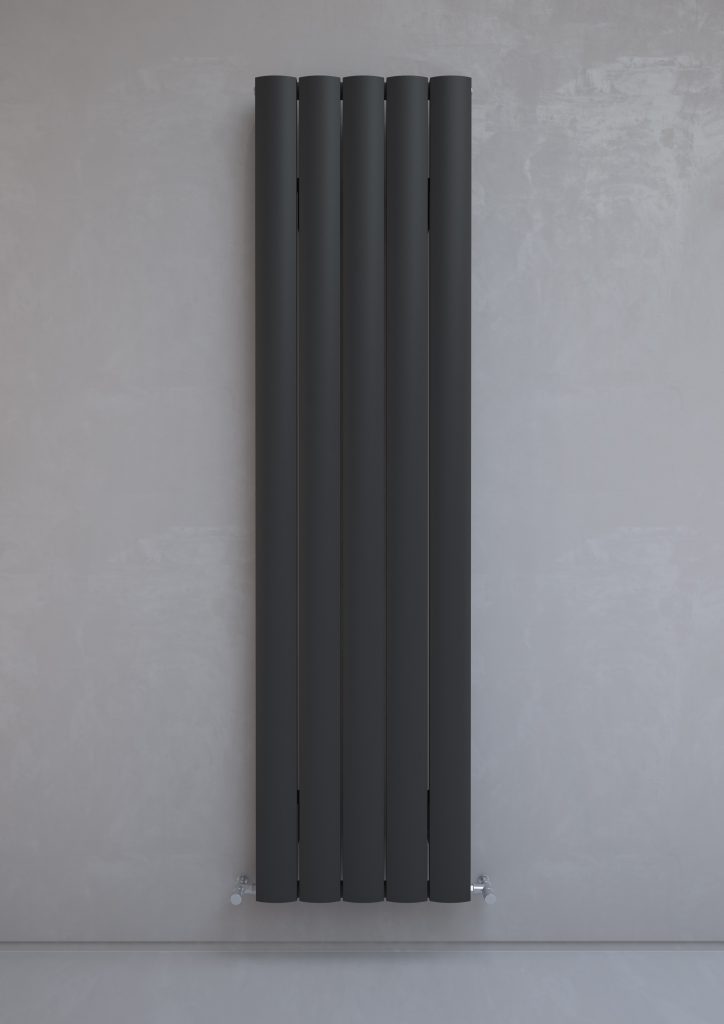

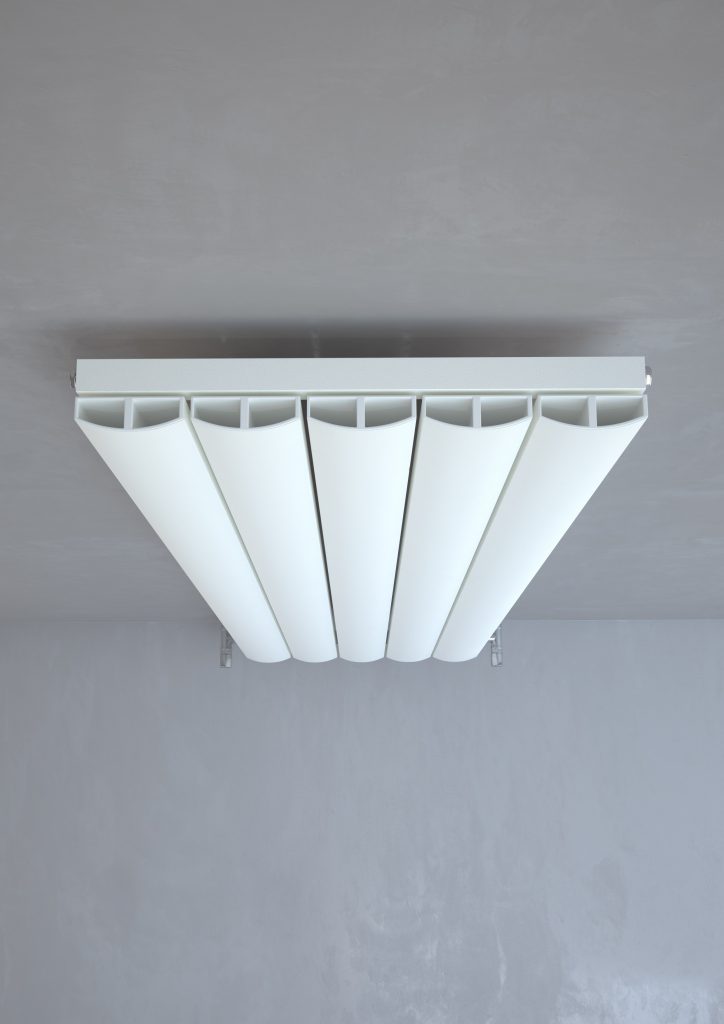

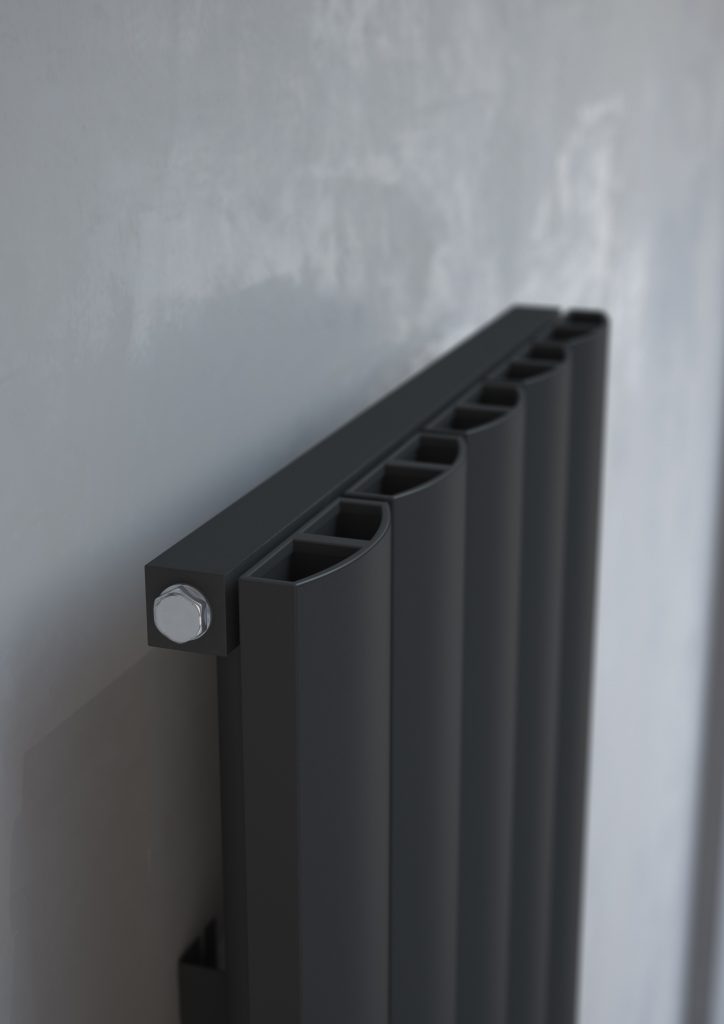

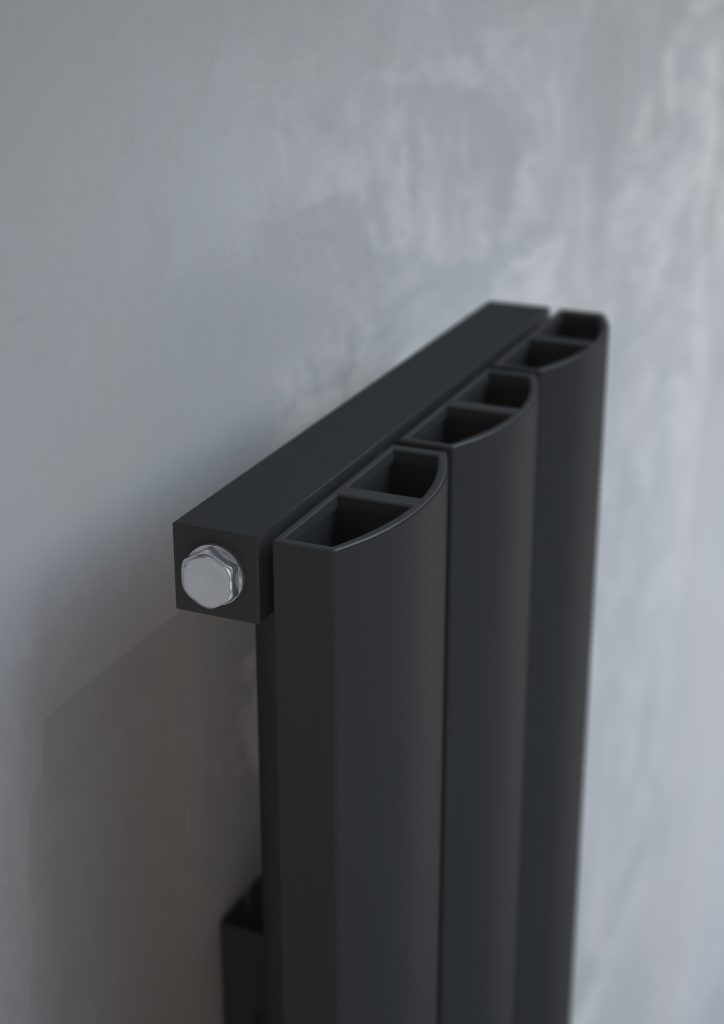

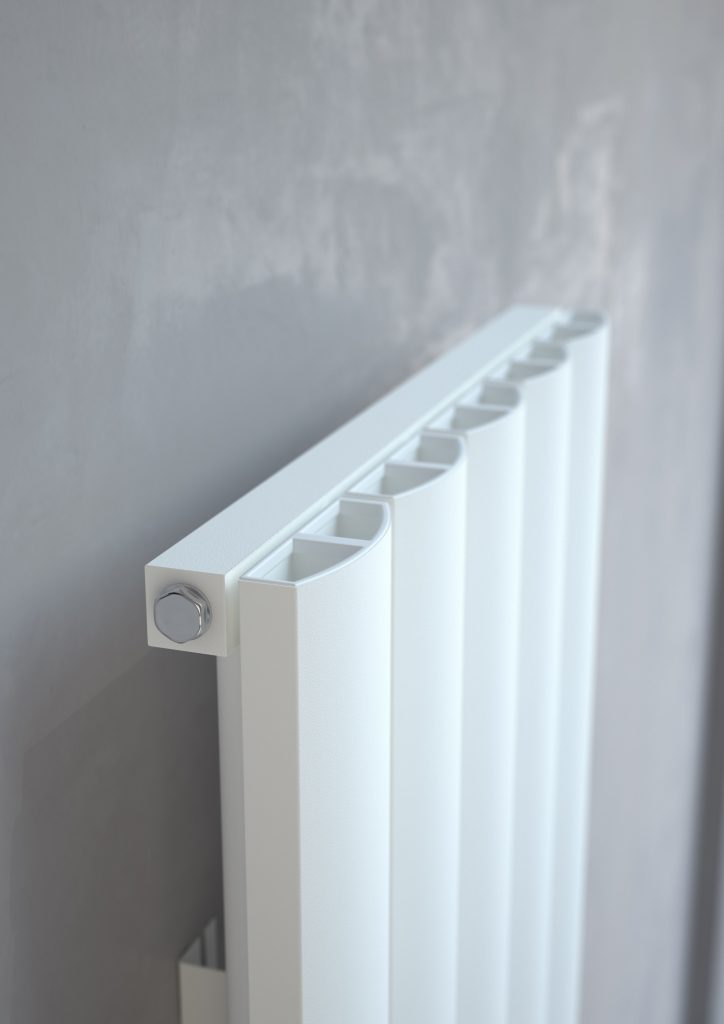

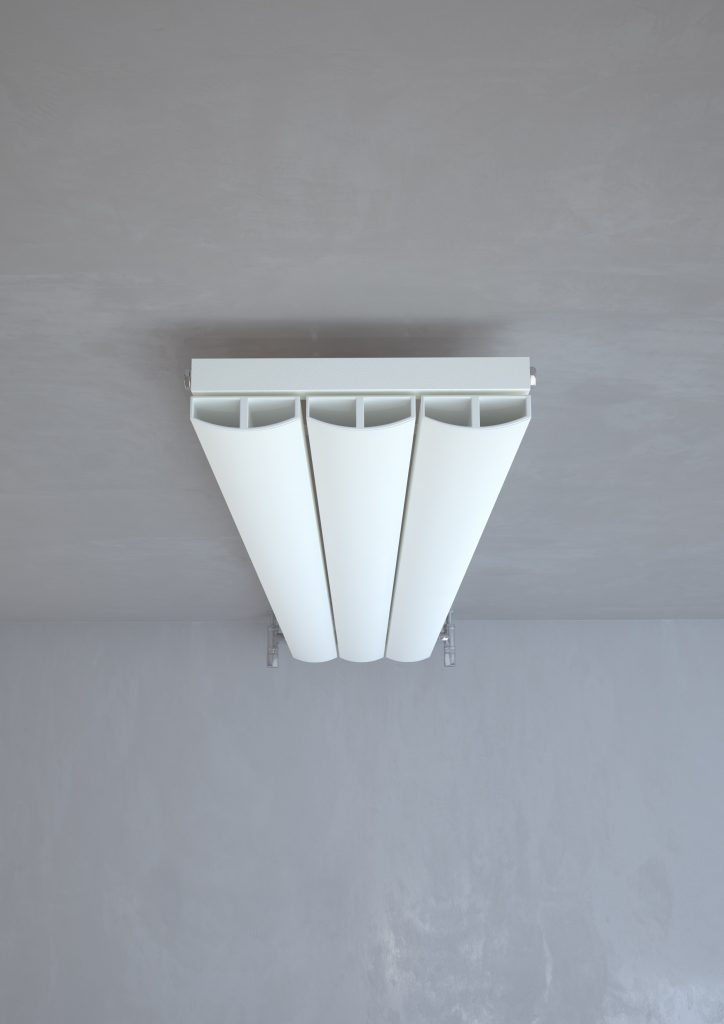

AluLite ARC

100% Aluminium

Lightweight

Low Water Content

Faster heat-up time

Textured Finish

25-Year Warranty

1800 x 280mm White

1800 x 470mm White

1800 x 280mm Black

1800 x 470mm Black

600 x 850mm

600 x 1040mm

600 x 1230mm

Dimensions & Specifications

Product Code	Finish	Height mm	Width mm	Fitted Depth mm	∆T50 Watts	∆T50 BTU	Pipe Centres mm	Wall to Thread Centre mm	Sections

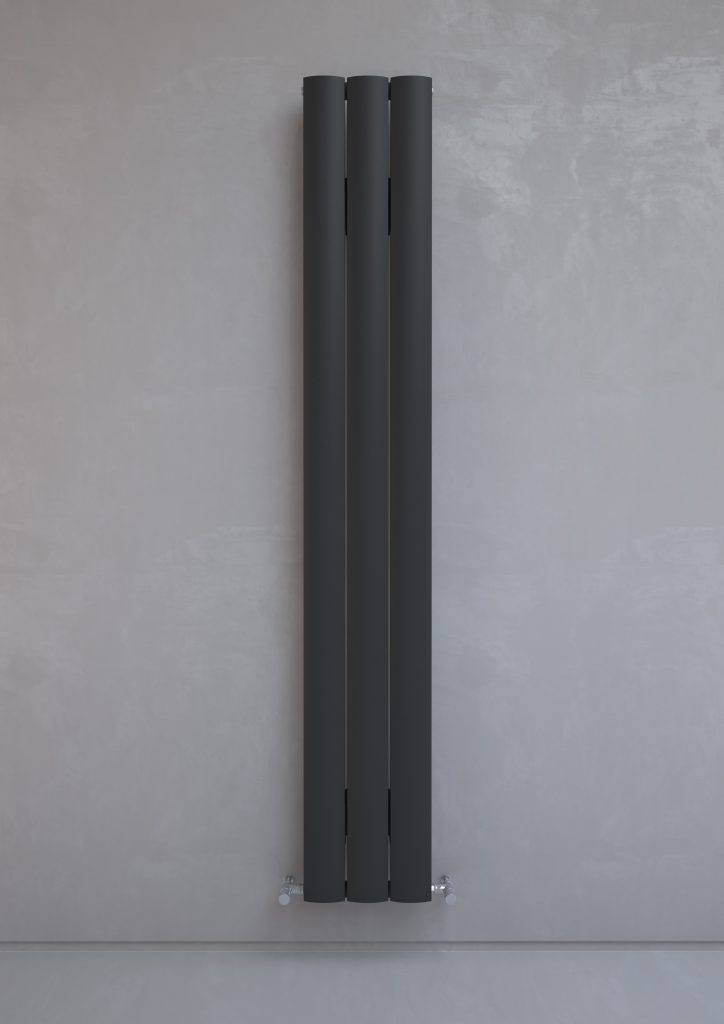

5060235348754	Textured Black	1800	280	82.5	702	2395	280 + Valves	43	3

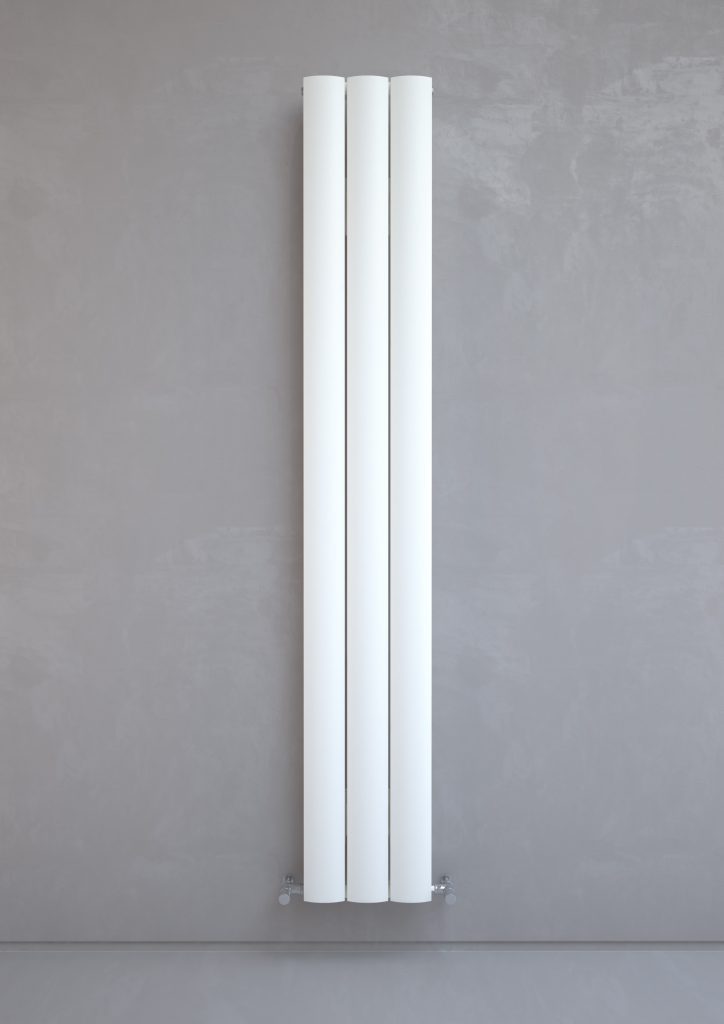

5060235348761	Textured White	1800	280	82.5	702	2395	280 + Valves	43	3
5060235348778	Textured Black	1800	470	82.5	1171	3996	470 + Valves	43	5

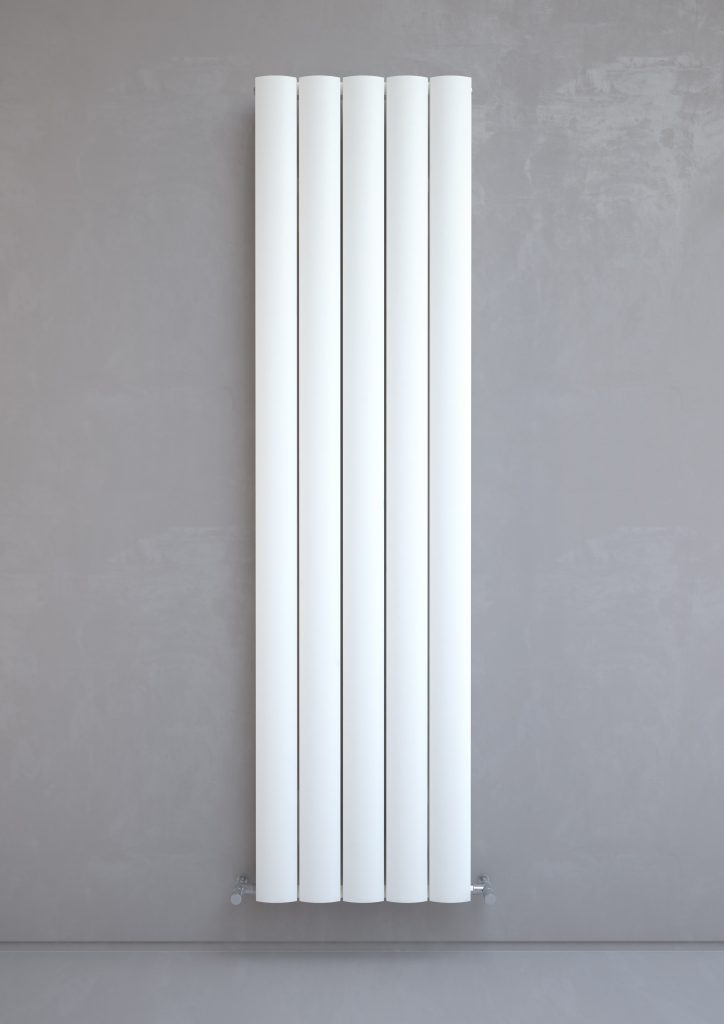

5060235348785	Textured White	1800	470	82.5	1171	3996	470 + Valves	43	5
5060235348792	Textured Black	600	850	68.5	824	2812	850 + Valves	29	9
5060235348808	Textured White	600	850	68.5	824	2812	850 + Valves	29	9

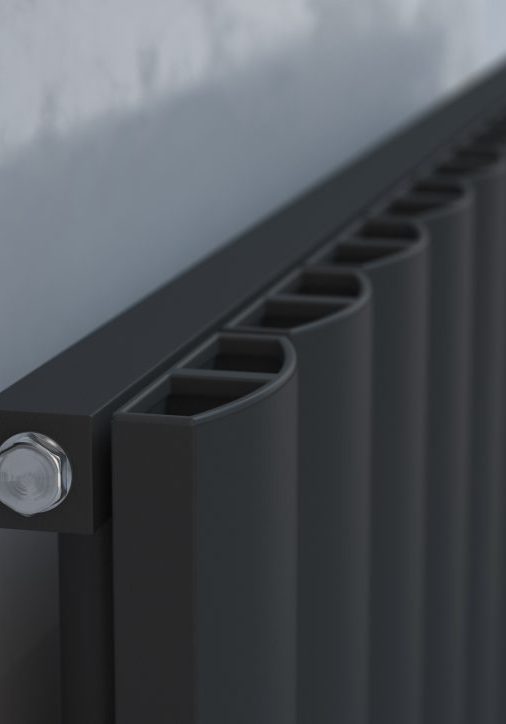

5060235348815	Textured Black	600	1040	68.5	1007	3436	1040 + Valves	29	11
5060235348822	Textured White	600	1040	68.5	1007	3436	1040 + Valves	29	11
5060235348839	Textured Black	600	1230	68.5	1190	4061	1230 + Valves	29	13
5060235348846	Textured White	600	1230	68.5	1190	4061	1230 + Valves	29	13

Installation Instructions and Brochure

Where to buy

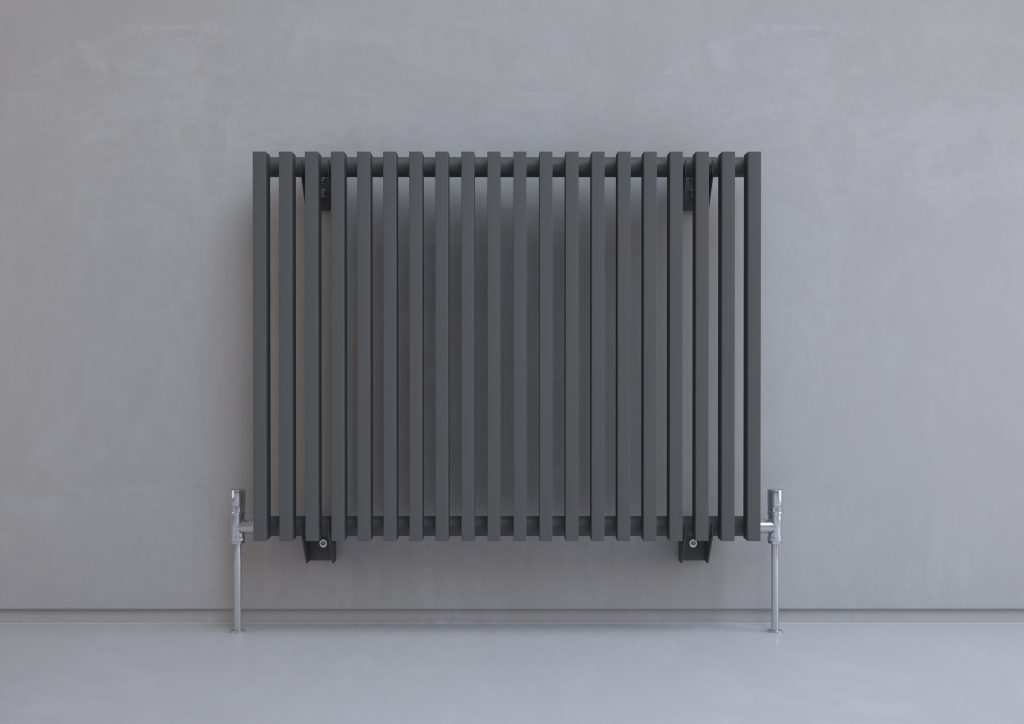

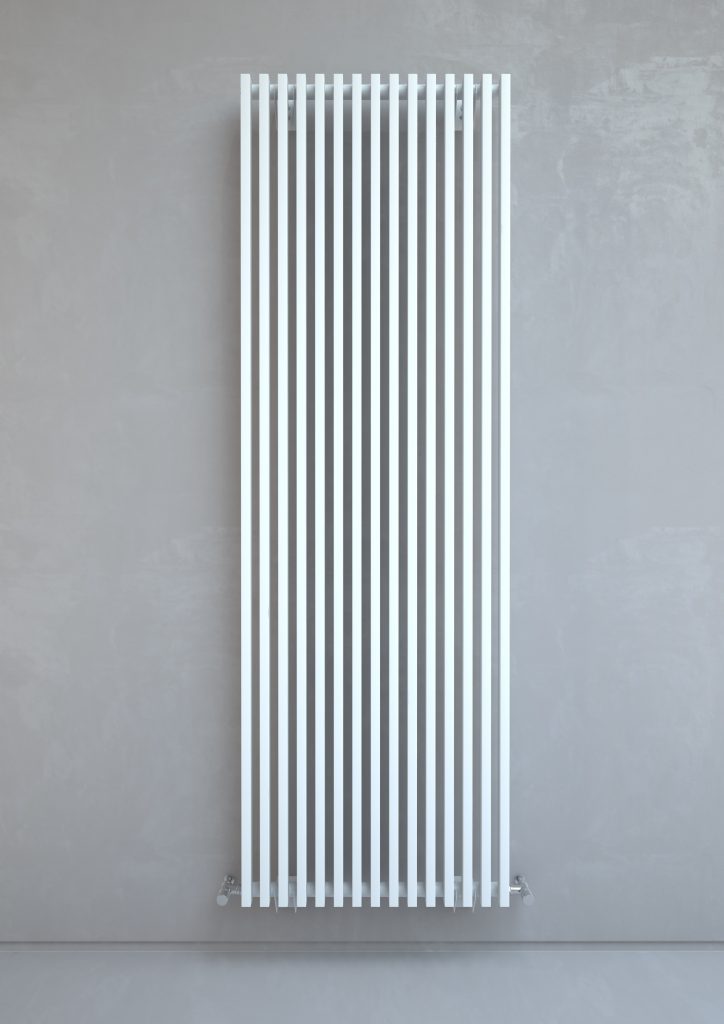

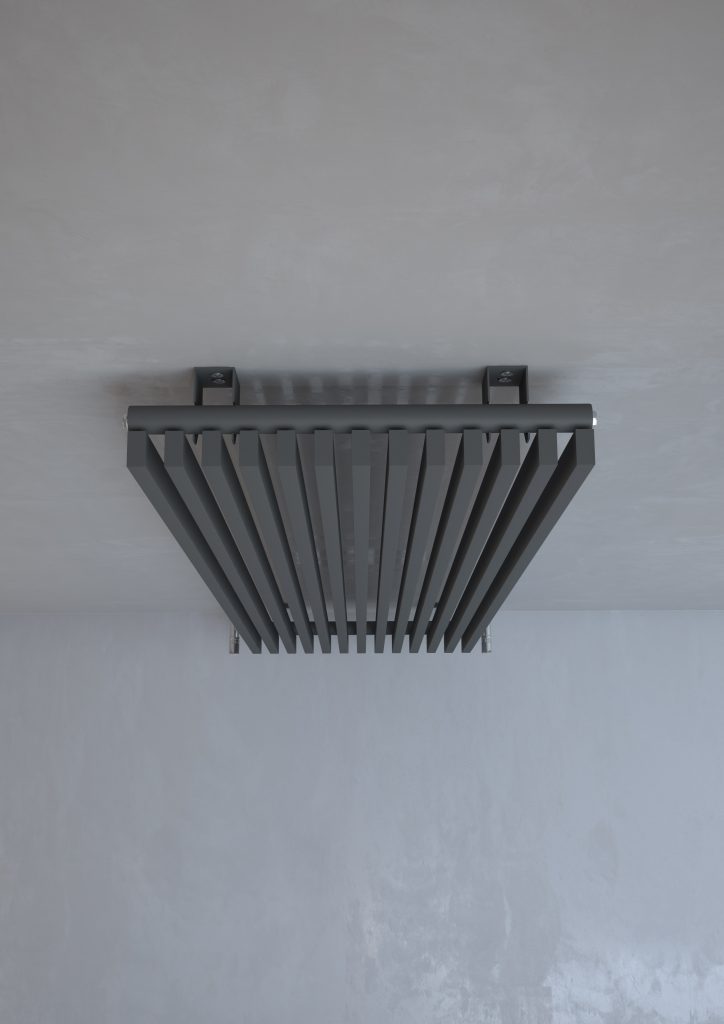

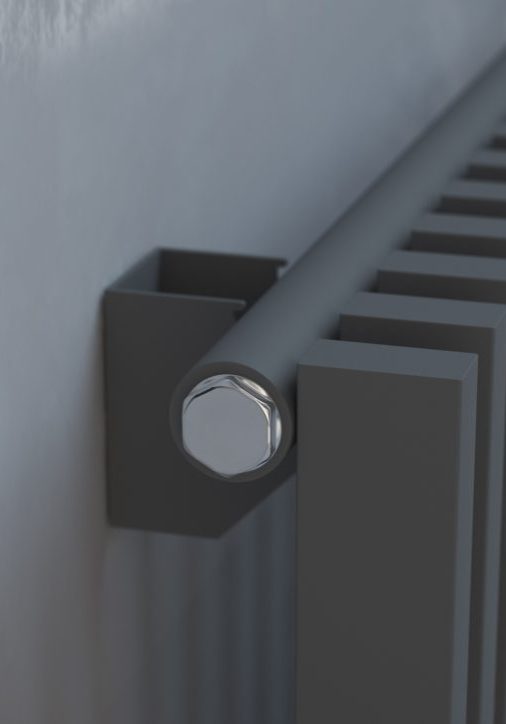

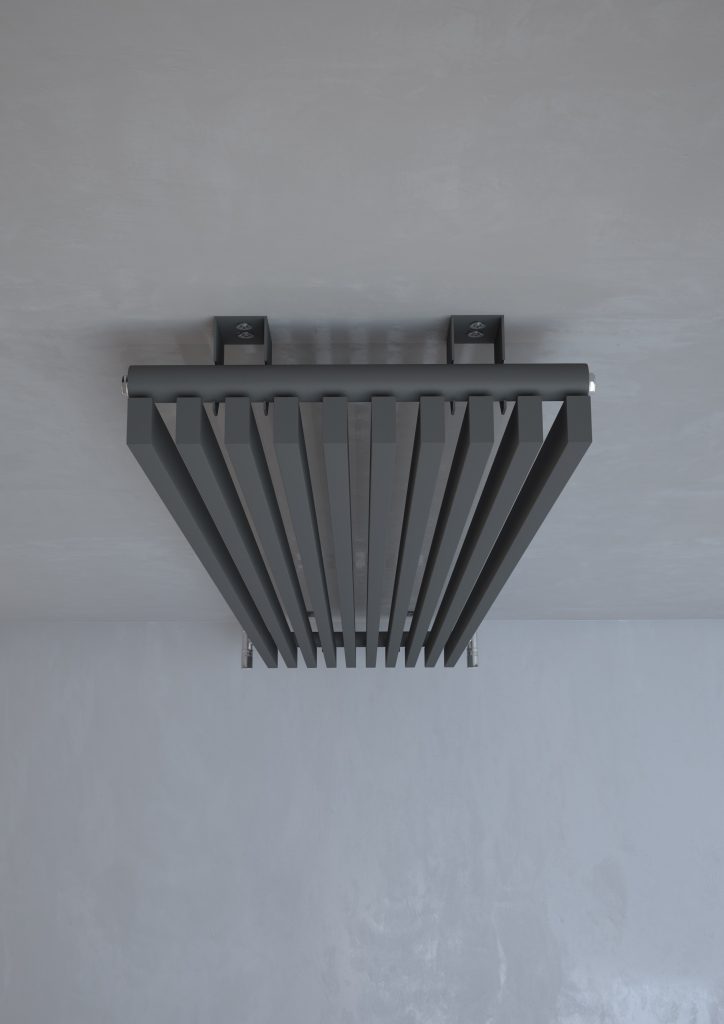

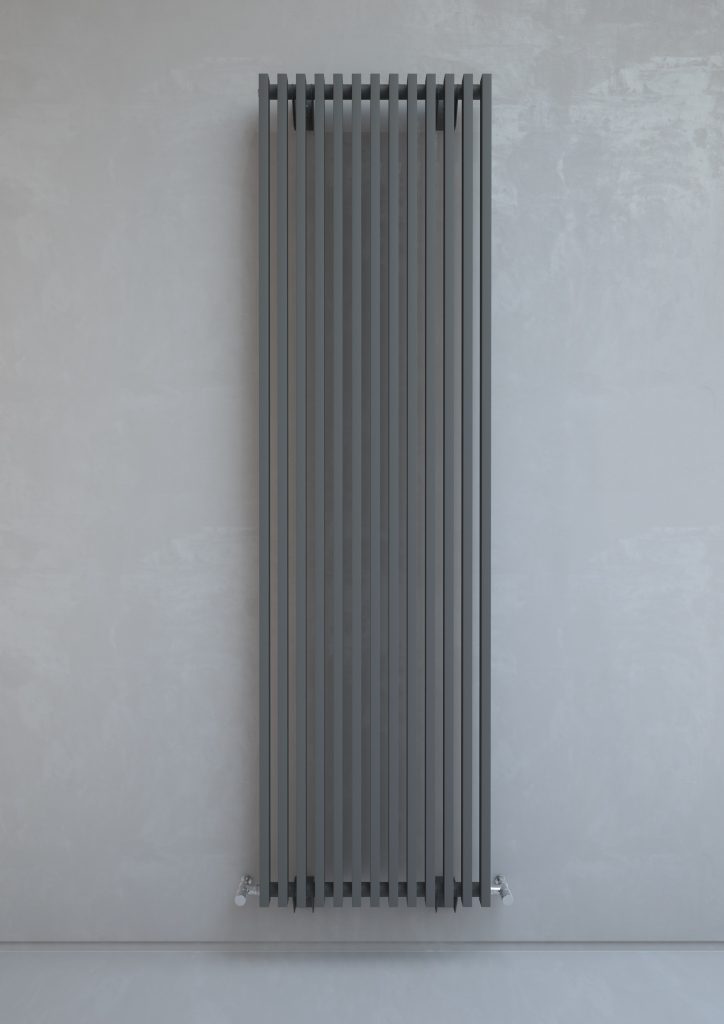

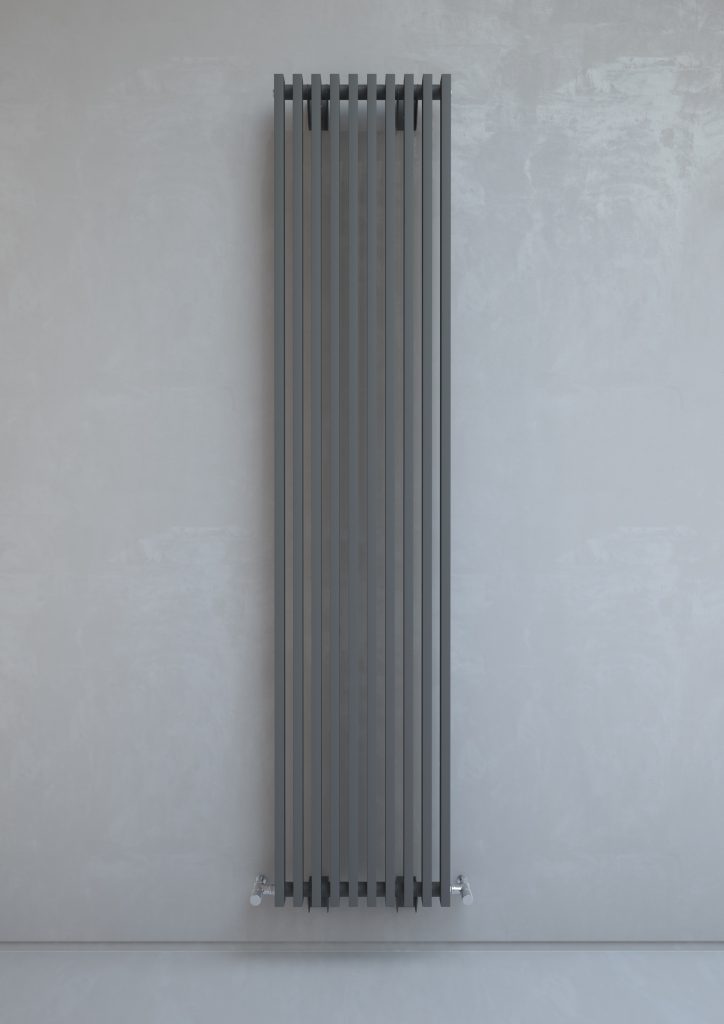

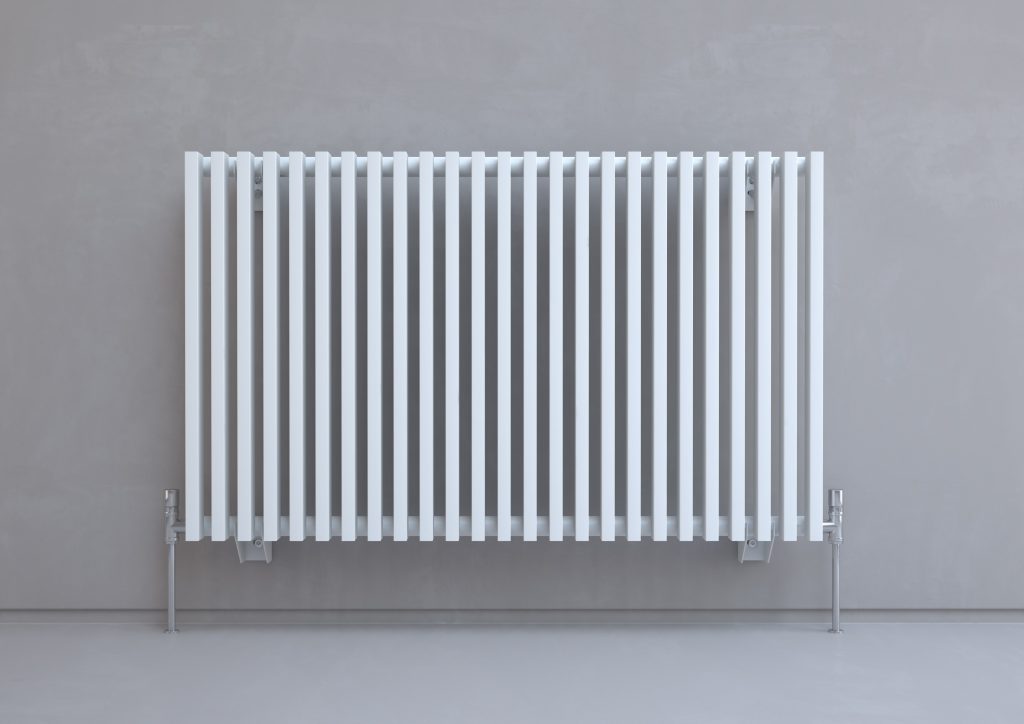

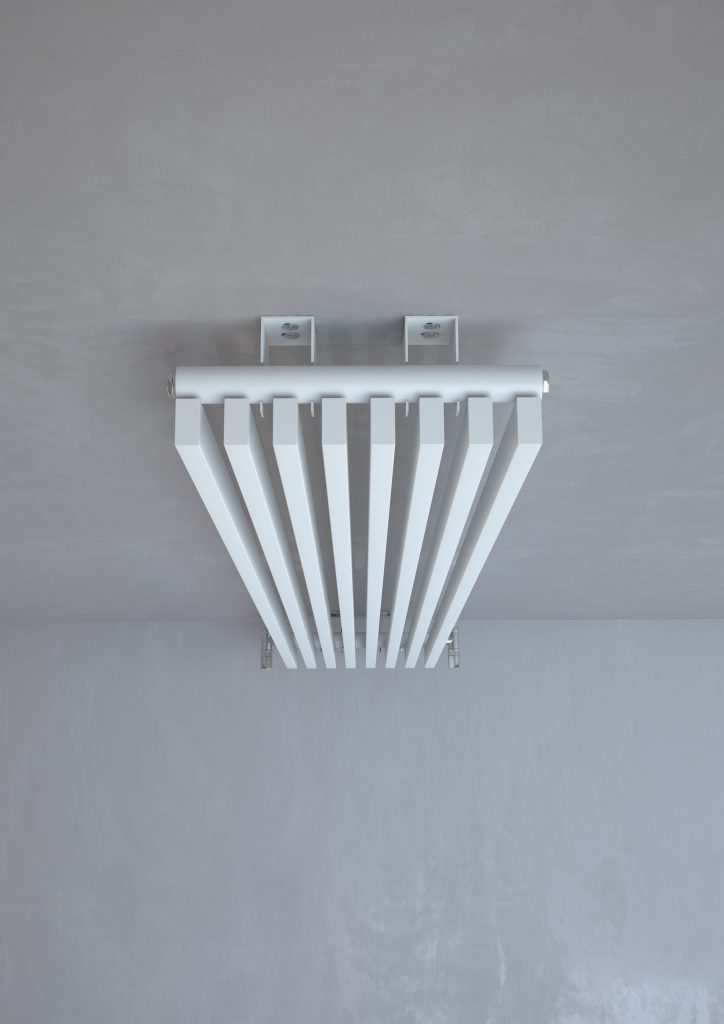

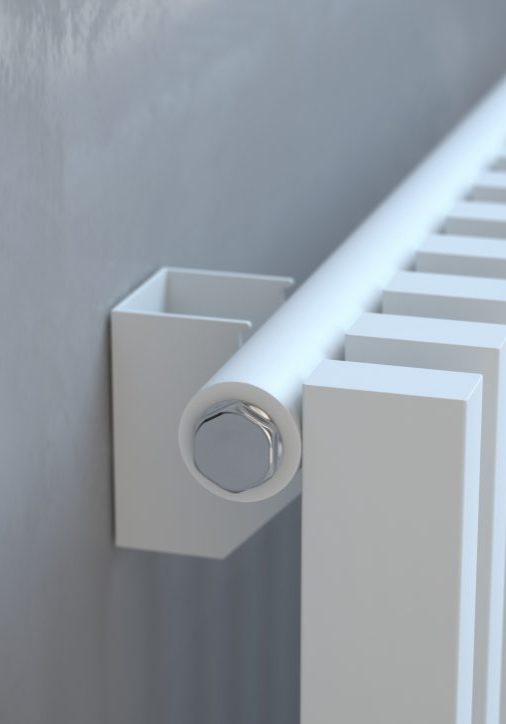

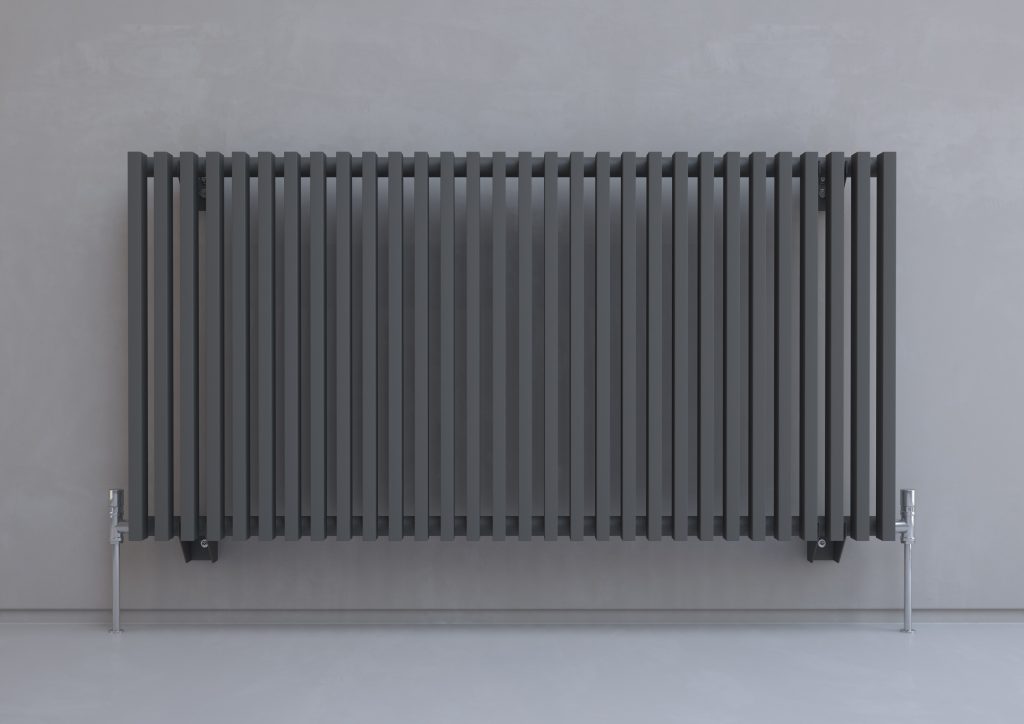

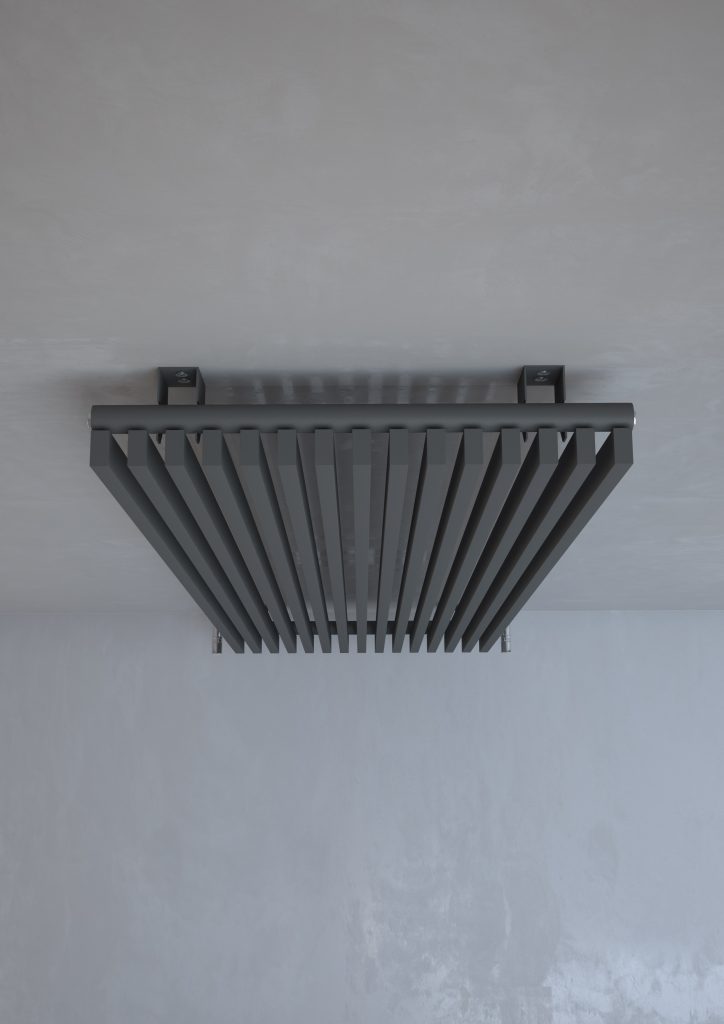

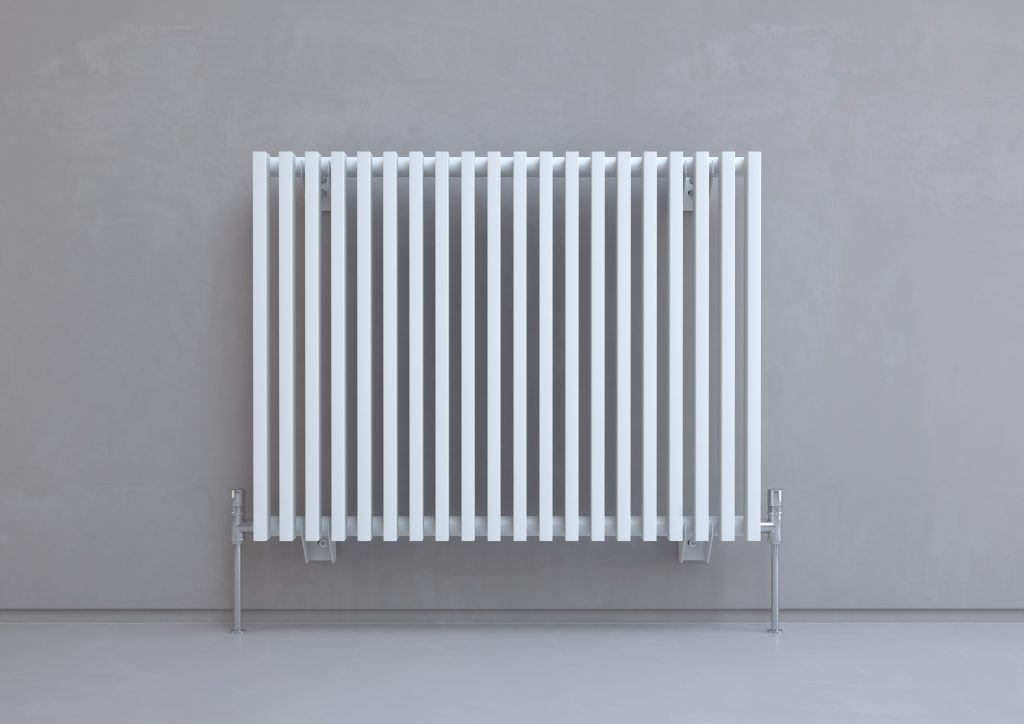

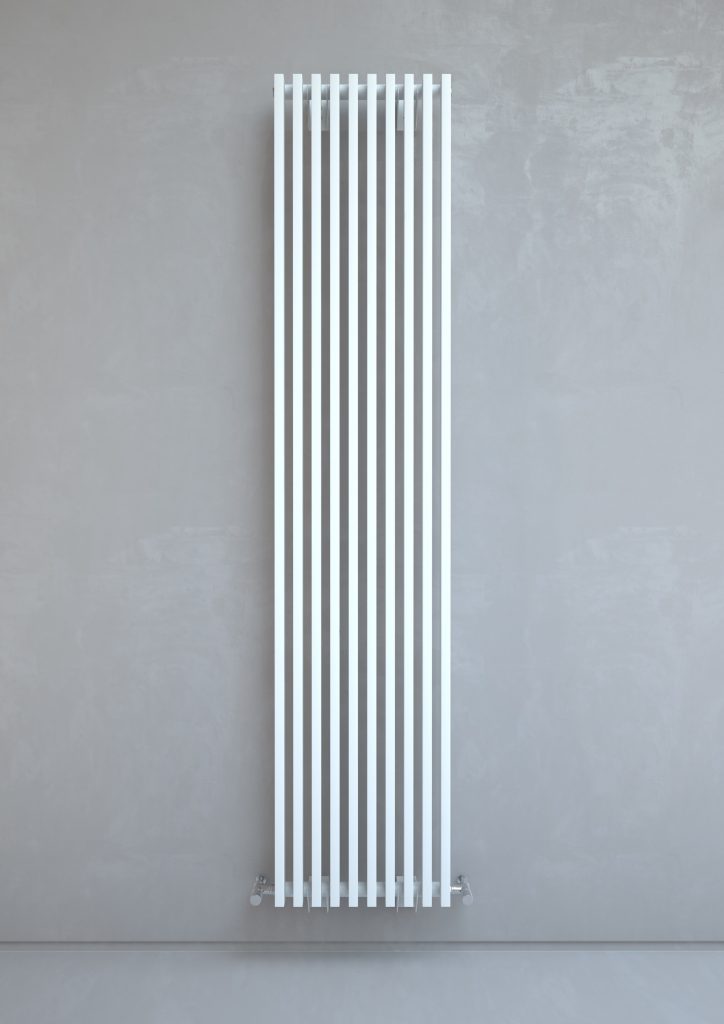

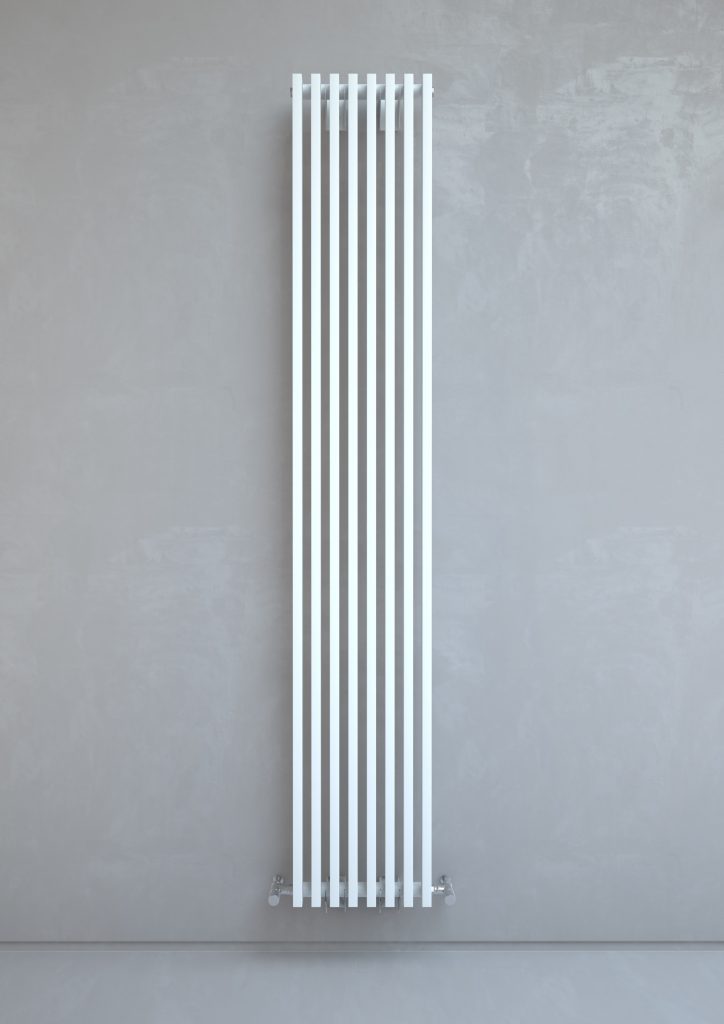

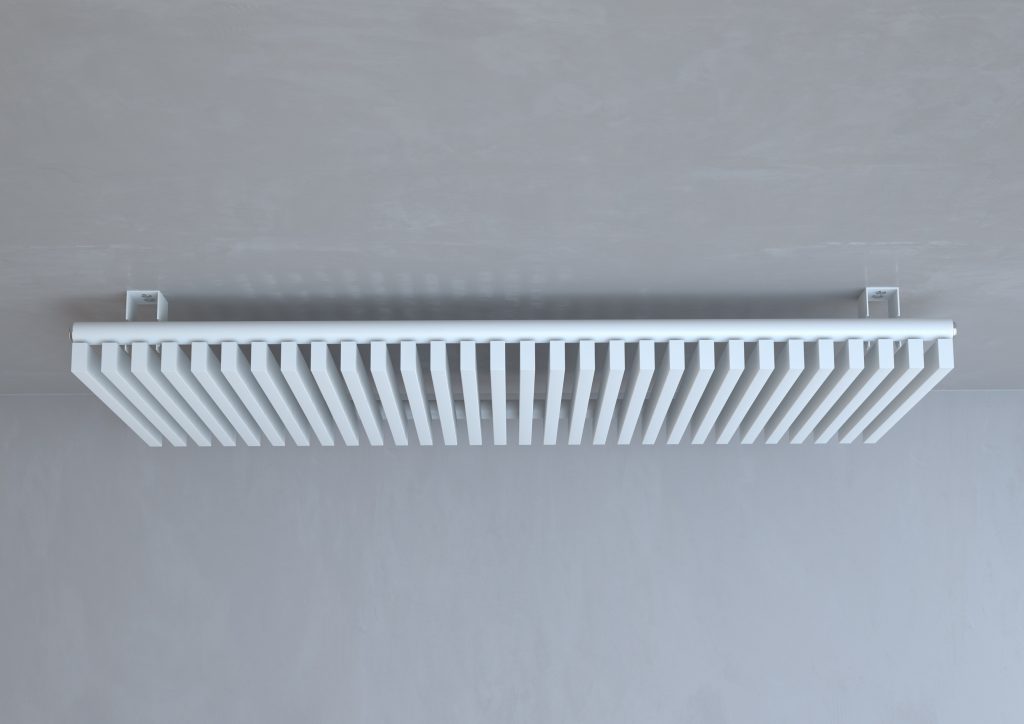

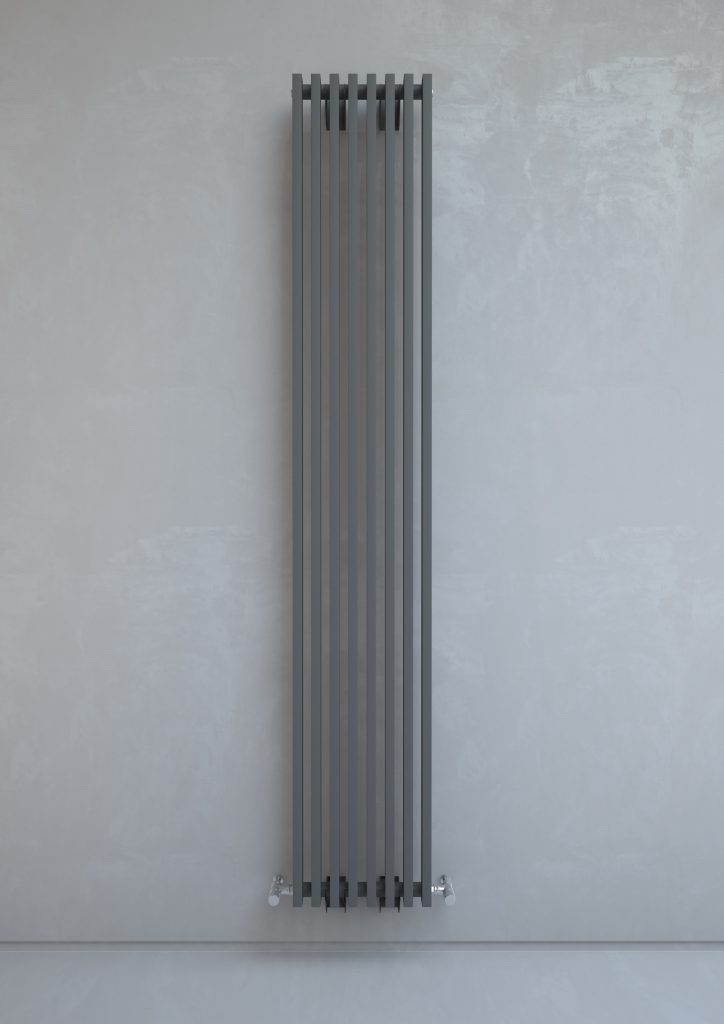

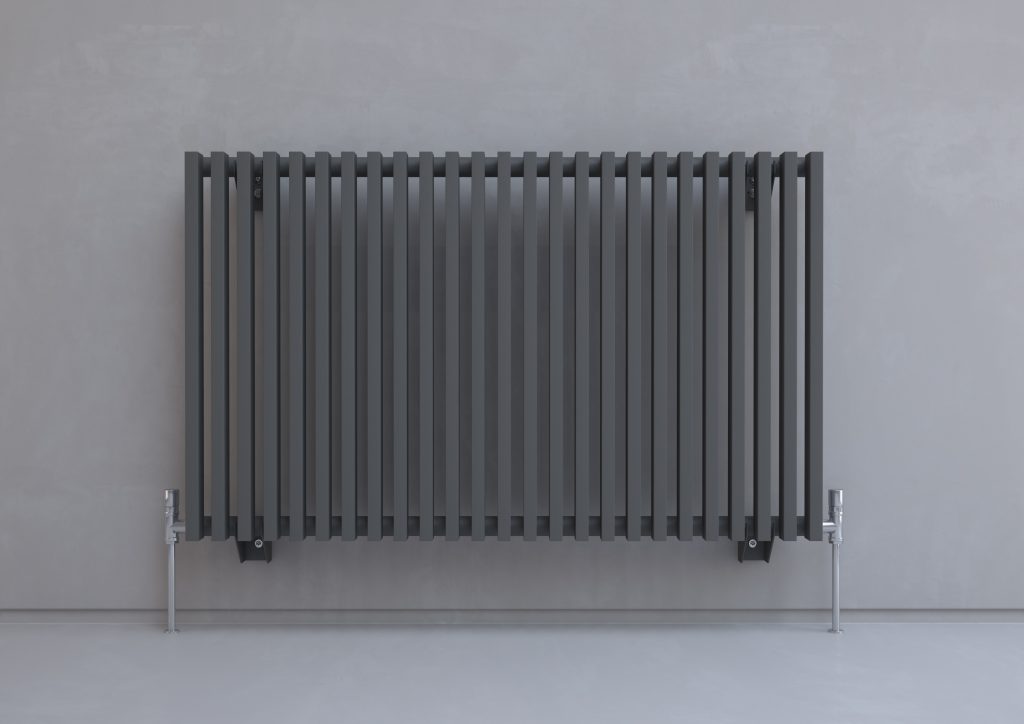

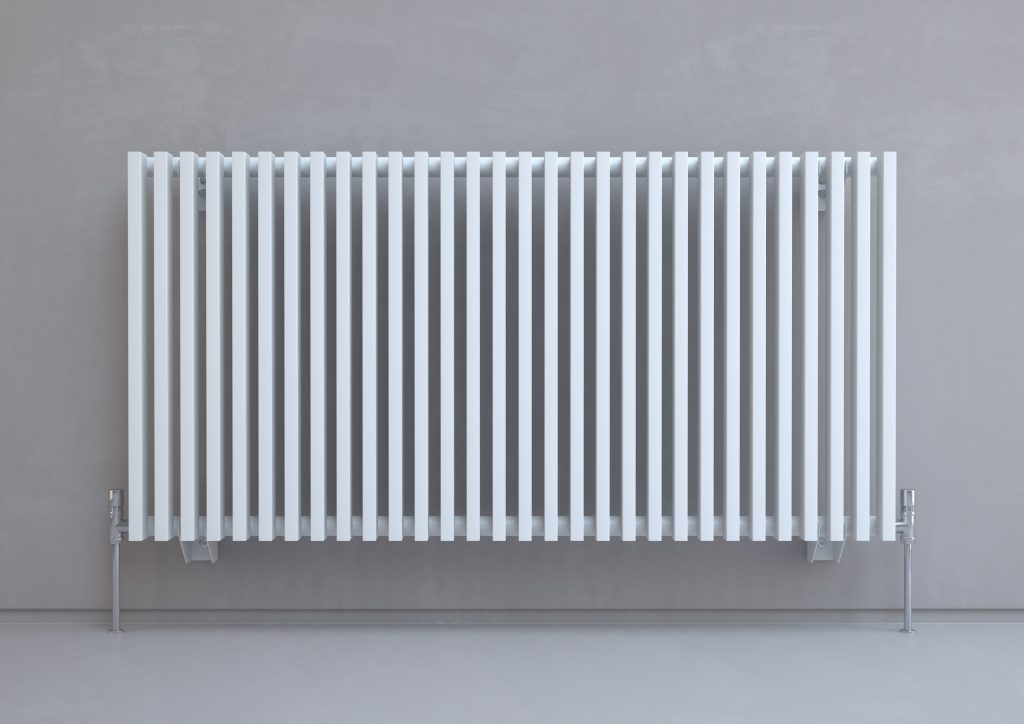

Xylo

Projected Bars

16 Models

Sleek Design

Steel construction

5-Year Warranty

1800 x 300mm

1800 x 380mm

1800 x 500mm

1800 x 580mm

600 x 580mm

600 x 780mm

600 x 980mm

600 x 1180mm

Dimensions & Specifications

Product Code	Finish	Height mm	Width mm	Fitted Depth mm	∆T50 Watts	∆T50 BTU	Pipe Centres mm	Wall to Thread Centre mm	Sections

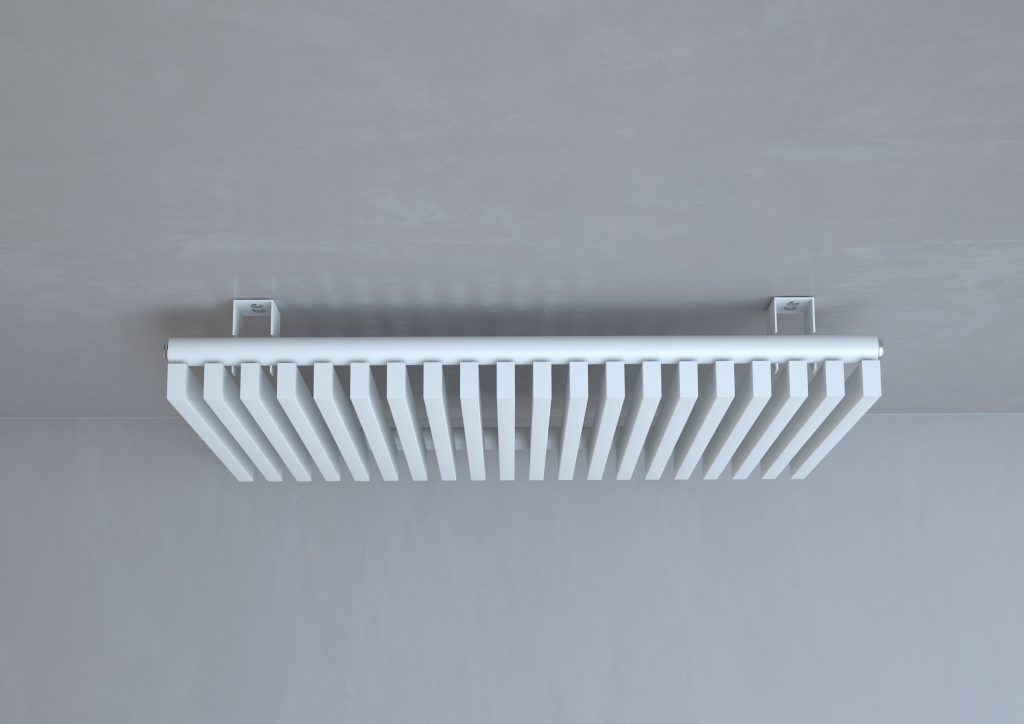

5060235341861	Arctic White	600	580	112	557	1901	580 + Valves	54	15
5060235341878	Textured Anthracite	600	580	112	557	1901	580 + Valves	54	15
5060235341885	Arctic White	600	780	112	749	2556	780 + Valves	54	20
5060235341892	Textured Anthracite	600	780	112	749	2556	780 + Valves	54	20

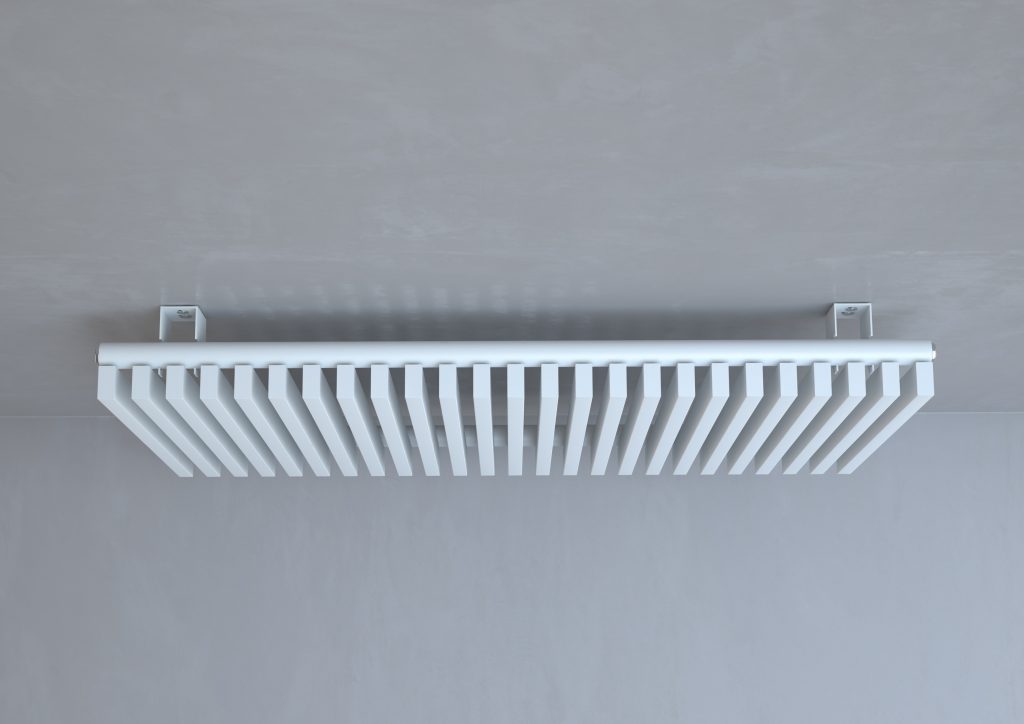

5060235341908	Arctic White	600	980	112	941	3211	980 + Valves	54	25

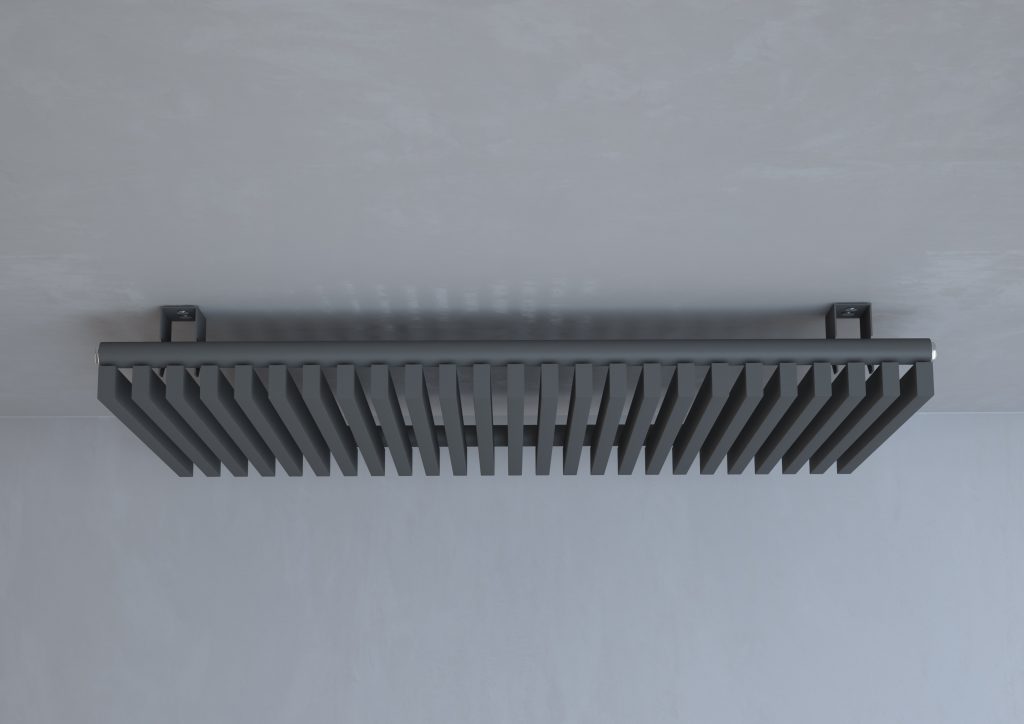

5060235341915	Textured Anthracite	600	980	112	941	3211	980 + Valves	54	25
5060235341922	Arctic White	600	1180	112	1133	3866	1180 + Valves	54	30

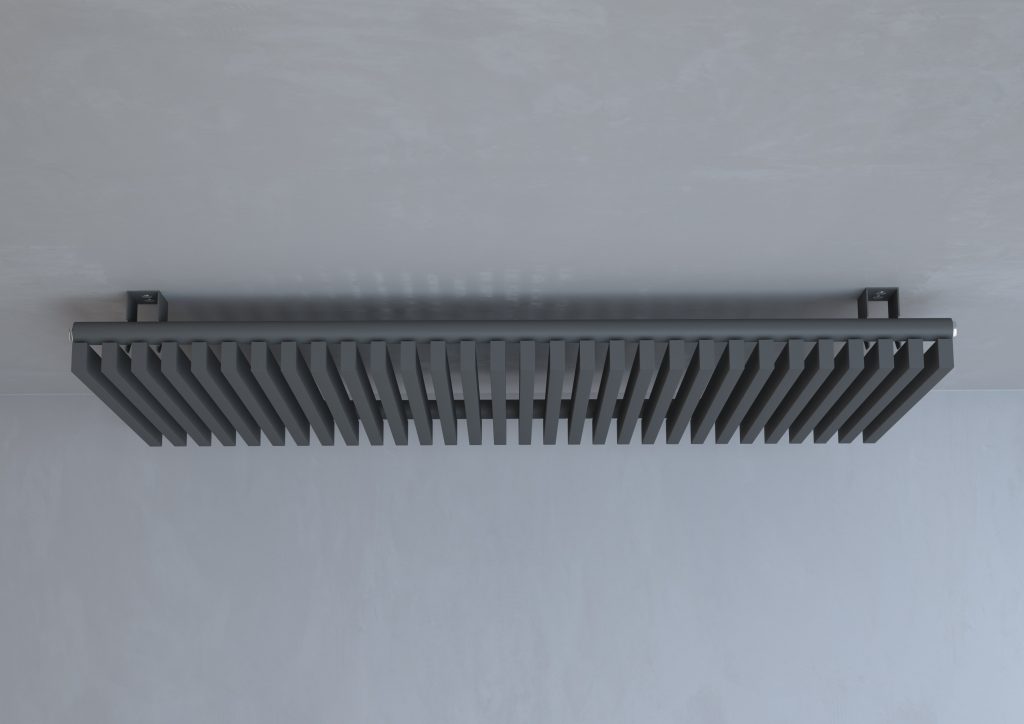

5060235341939	Textured Anthracite	600	1180	112	1133	3866	1180 + Valves	54	30
5060235341946	Arctic White	1800	300	112	705	2406	300 + Valves	54	8

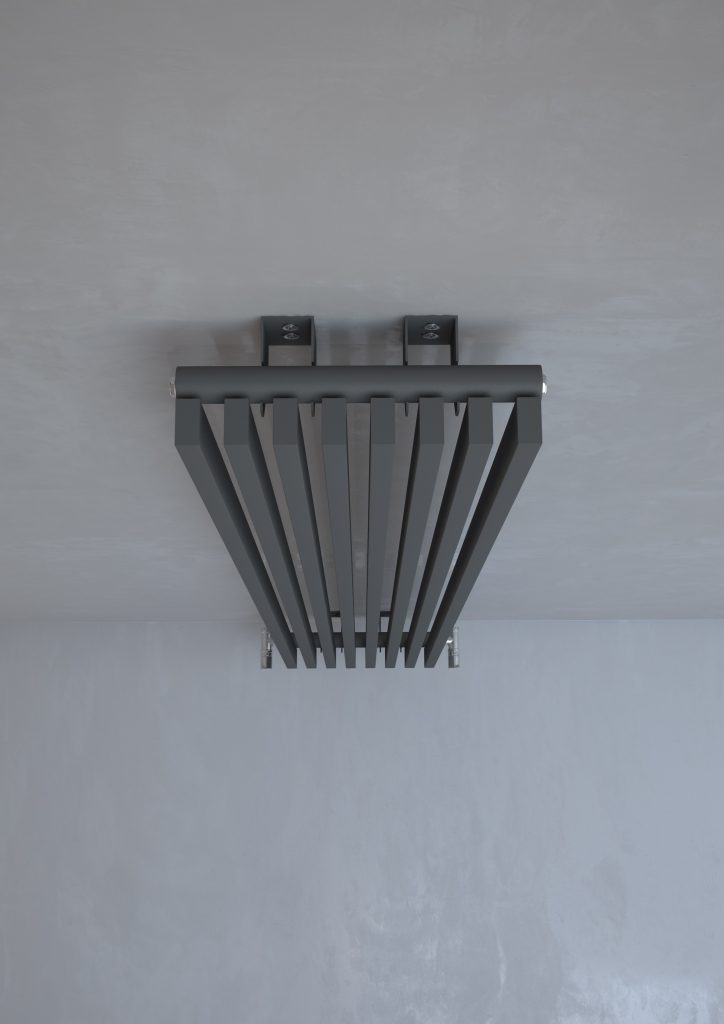

5060235341953	Textured Anthracite	1800	300	112	705	2406	300 + Valves	54	8

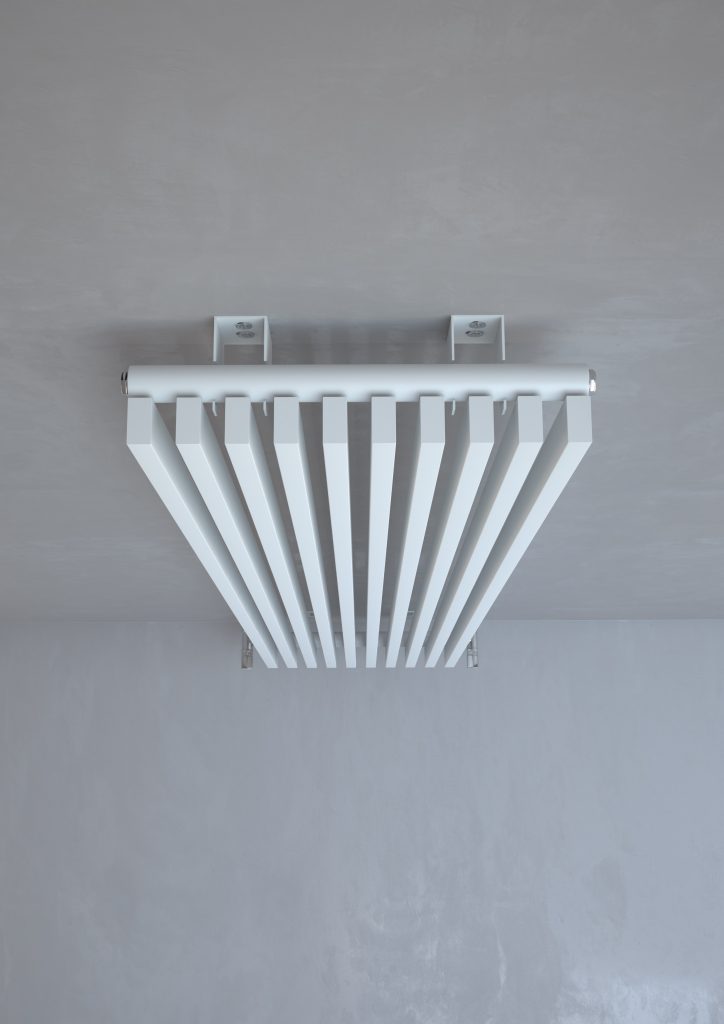

5060235341960	Arctic White	1800	380	112	893	3047	380 + Valves	54	10
5060235341977	Textured Anthracite	1800	380	112	893	3047	380 + Valves	54	10

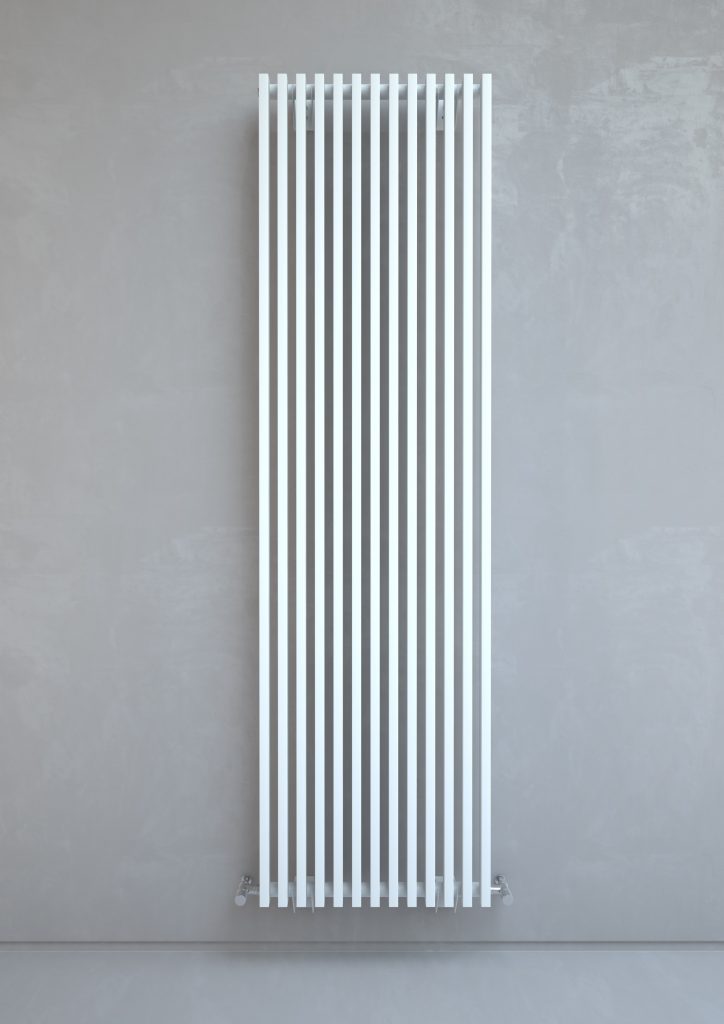

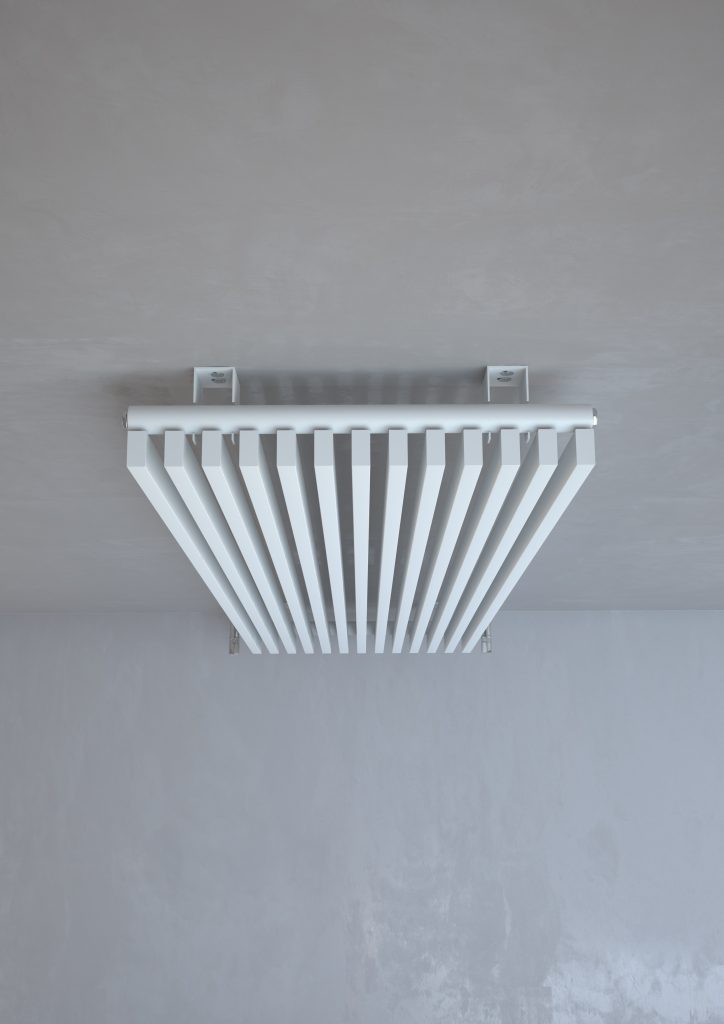

5060235341984	Arctic White	1800	500	112	1175	4009	500 + Valves	54	13
5060235341991	Textured Anthracite	1800	500	112	1175	4009	500 + Valves	54	13

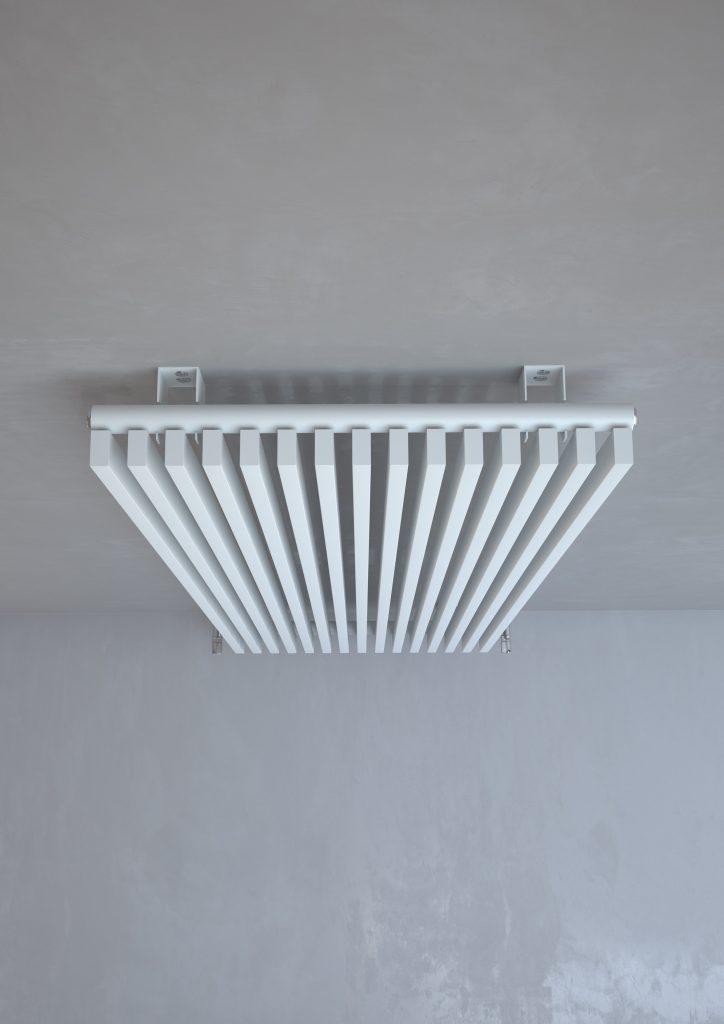

5060235342004	Arctic White	1800	580	112	1363	4651	580 + Valves	54	15

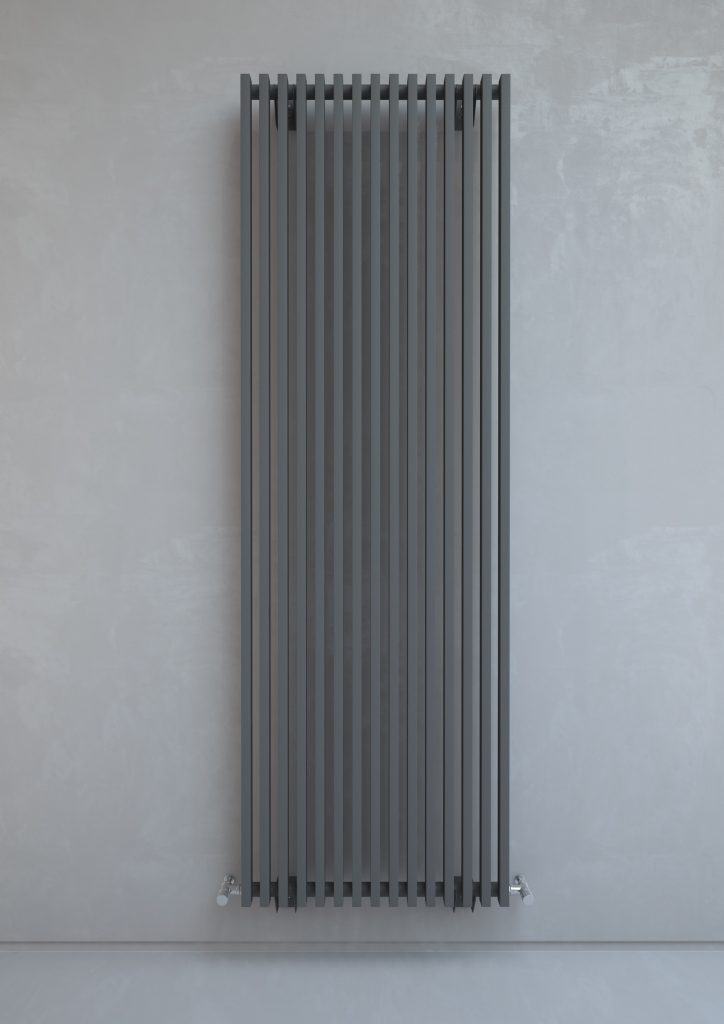

5060235342011	Textured Anthracite	1800	580	112	1363	4651	580 + Valves	54	15

Installation Instructions and Brochure

Where to buy

Elmas

Unique Profile

Easy-install

Slim Design

Steel Construction

5-Year Warranty

1800 x 410mm

600 x 810mm

600 x 970mm

600 x 1210mm

Dimensions & Specifications

Product Code	Finish	Height mm	Width mm	Fitted Depth mm	∆T50 Watts	∆T50 BTU	Pipe Centres mm	Wall to Thread Centre mm	Sections
5060235347542	Satin White	600	810	67	560	1911	810 + Valves	47	10
5060235347559	Textured Anthracite	600	810	67	560	1911	810 + Valves	47	10
5060235347566	Satin White	600	970	67	672	2293	970 + Valves	47	12
5060235347573	Textured Anthracite	600	970	67	672	2293	970 + Valves	47	12
5060235347580	Satin White	600	1210	67	840	2866	1210 + Valves	47	15
5060235347597	Textured Anthracite	600	1210	67	840	2866	1210 + Valves	47	15
5060235348297	Satin White	1800	410	67	700	2387	410 + Valves	47	5
5060235348303	Textured Anthracite	1800	410	67	700	2387	410 + Valves	47	5

Installation Instructions and Brochure

Where to buy
